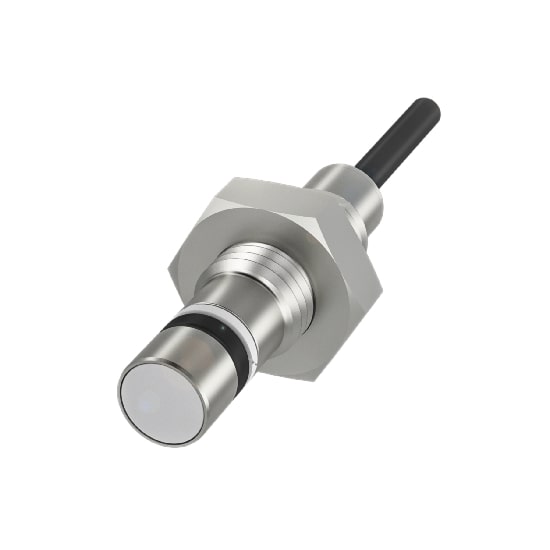

BALLUFF BHS0058 PRESSURE-RATED INDUCTIVE SENSOR

BALLUFF BHS0058 PRESSURE-RATED INDUCTIVE SENSOR
  • Model: BHS0058
$0.00
Ex Tax: $0.00

BALLUFF BHS0058 FEATURES

  • Connection: Cable, 2.00 m, PUR
  • Operating temperature: -25 to 80 °C
  • IP rating: IP68
  • Pressure rating max: 500 bar
  • Short and long configurations
  • With and without a fixed stop
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

BALLUFF BHS0058 INTRODUCTION

Balluff BHS pressure-rated inductive sensors withstand pressures up to 500 bar. They are perfectly suited for monitoring the position of your hydraulics, such as when controlling the end position of hydraulic cylinders or monitoring valve positions.


Their durability is made possible by media-resistant housing materials and a special sealing process. For your applications, we offer a comprehensive range of product configurations with different housing diameters and thread sizes.


As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BHS0058 PRESSURE-RATED INDUCTIVE SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the BHS004N and BHS004P models in the BALLUFF Pressure-rated Inductive Sensors.

BALLUFF BHS0058 CERTIFICATIONS



Inductive Sensors : Interface
Output Characteristic PNP normally open (NO)
Inductive Sensors : Electrical Connection
Connection Cable, 2.00 m, PUR
Polarity Reversal Protected Yes
Inductive Sensors : Electrical Data
Protection Class -
Ripple 10 %
Switching Frequency 4000 Hz
Operating Voltage Ub 10 to 30 VDC
Current (Ie) 100 mA
Inductive Sensors : Range/Distance
Measuring Range 1.5 mm
Assured Operating Distance Sa 1.2 mm
Real Switching Distance sr 1.5 mm
Inductive Sensors : Physical and Environmental Characteristics
Dimension Ø 6.5 x 31.3 mm
Weight -
Installation For flush mounting
Operating Temperature -25 to 80 °C
Housing Stainless steel
IP Rating IP68
Tightening Torque 7 Nm ±10 %
MTTF 735 a
Standards and Approvals CE, UKCA, cULus, WEEE, IEC 60947-5-2
