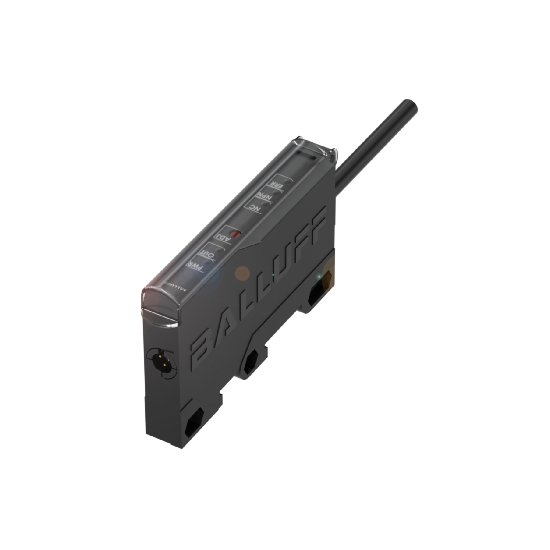

BALLUFF BAE00KH AMPLIFIER FOR CAPACITIVE SENSOR HEADS

BALLUFF BAE00KH AMPLIFIER FOR CAPACITIVE SENSOR HEADS
  • Model: BAE00KH
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

Introduction


Balluff remote amplifiers enable our capacitive sensor heads to be setup and evaluated easily. Compact evaluation units with switching signals, analog values, or IO-Link functionality for top-hat rail mounting are available for this purpose.

Adjustable beyond critical environments, various setting options provide extended functionality for almost all capacitive sensor heads from Balluff.


Certifications




Features


  • Connection: Cable, 2.00 m, PUR
  • Operating temperature: -10 to 70 °C
  • IP rating: IP40
  • Series: BAE
  • With comfort or IO-Link evaluation unit for top-hat rail mounting
  • Adjustment possible beyond critical environment conditions
  • Compact configurations and various functional modes
Sensor : Basic features
Approval/Conformity CE, UKCA, cULus, WEEE
Basic standard IEC 60947-5-2
Sensor : Display/Operation
Function Indicator Yes
Power Indicator Yes
Sensor : Electrical Connection
Cable diameter D 4.50 mm
Cable length L 2 m
Number of conductors 4
Sensor : Electrical Data
Operating Voltage Ub 12 to 30 VDC
Output Resistance Ra _
Protection Class _
Switching Frequency 100 Hz
Sensor : Environmental Conditions
EN 60068-2-27, Shock _
EN 60068-2-6, Vibration _
Sensor : Functional Safety
MTTF (40 °C) 405 a
Sensor : Interface
Switching Output PNP/NPN NO/NC programmable
Sensor : Material
Housing Material PBT
Material Jacket PUR
Material Sensing Surface _
Sensor : Mechanical Data
Dimension 10.5 x 45 x 75.5 mm
Installation _
Size _
Sensor : Range/Distance
Assured Operating Distance Sa _
Rated Operating Distance Sn _
Real Switching Distance sr _
