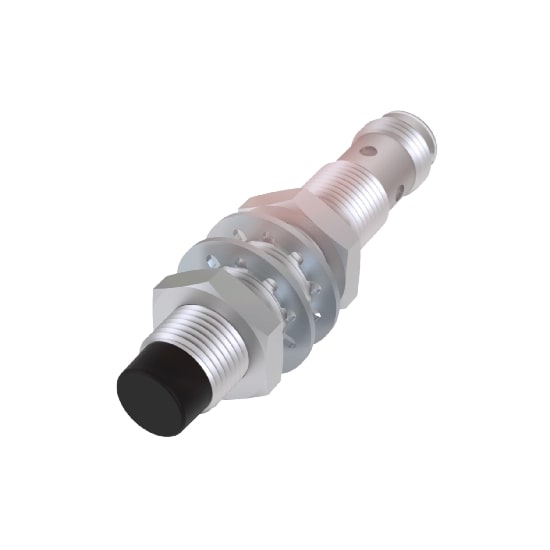

BALLUFF BAW0056 INDUCTIVE DISTANCE SENSOR
BALLUFF BAW0056 INDUCTIVE DISTANCE SENSOR
- Model: BAW0056
$0.00
Ex Tax: $0.00
BALLUFF BAW0056 FEATURES
- Connection: M12x1-Male, 4-pin, A-coded
- Operating temperature: -40 to 80 °C
- IP rating: IP67
- Interface: IO-Link 1.1, 12 bits
- Compact, solid, and reliable
- Non-contacting and thus free from wear
- Absolute measuring principle
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
BALLUFF BAW0056 INTRODUCTION
Balluff BAW inductive distance sensors measure various positions, and distances, and can differentiate between material variants. They work without making contact, and so remain distinguished by a long service life free from wear.
The included teach function has an adjustable linearity range. This enables quick commissioning during initial installation and ensures short downtimes when replacing sensors.
BALLUFF BAW0056 CERTIFICATIONS
Sensor : Basic features | |
Approval/Conformity | CE, UKCA, cULus, WEEE |
Basic standard | IEC 60947-5-2, IEC 60947-5-7 |
Sensor : Display/Operation | |
Function Indicator | Adjustment indicator |
Power Indicator | No |
Sensor : Electrical Connection | |
Cable diameter D | _ |
Cable length L | _ |
Number of conductors | _ |
Sensor : Electrical Data | |
Operating Voltage Ub | 18 to 30 VDC |
Output Resistance Ra | _ |
Protection Class | II |
Switching Frequency | _ |
Sensor : Environmental Conditions | |
EN 60068-2-27, Shock | Half-sinus, 30 g , 11 ms |
EN 60068-2-6, Vibration | 55 Hz, amplitude 1 mm, 3x30 min |
Sensor : Functional Safety | |
MTTF (40 °C) | 462 a |
Sensor : Interface | |
Switching Output | _ |
Sensor : Material | |
Housing Material | Brass, Nickel-free coated |
Material Jacket | _ |
Material Sensing Surface | LCP |
Sensor : Mechanical Data | |
Dimension | Ø 12 x 65 mm |
Installation | non-flush |
Size | M12x1 |
Sensor : Range/Distance | |
Assured Operating Distance Sa | _ |
Rated Operating Distance Sn | _ |
Real Switching Distance sr | _ |
