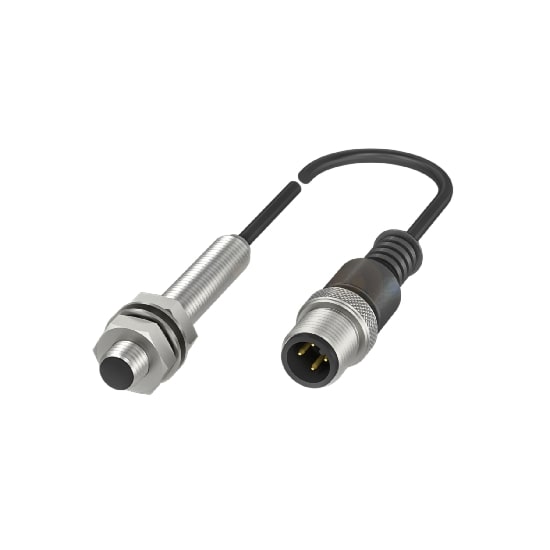

BALLUFF BES003E INDUCTIVE STANDARD SENSOR






BALLUFF BES003E INDUCTIVE STANDARD SENSOR
- Model: BES003E
$0.00
Ex Tax: $0.00
BALLUFF BES003E FEATURES
- Connection: M12x1-Male, 4-pin, A-coded, Cable with connector, 0.20 m, PUR
- Operating temperature: -25 to 70 °C
- IP rating: IP68
- Shielded and unshielded versions
- Plug or cable connection

Over 40 Years in Business
Successful track record across Canada

Full Engineering Services
A powerhouse to provide consultation, training, and support

Strong Brand Portfolio
Top-notch products from superb global and local suppliers

Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
BALLUFF BES003E INTRODUCTION
Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.
The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.
As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES003E INDUCTIVE STANDARD SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the BES00CU and BES00CK models in the BALLUFF Inductive Standard Sensors.
BALLUFF BES003E CERTIFICATIONS
Inductive Sensors : Interface | |
Output Characteristic | PNP normally open (NO) |
Inductive Sensors : Electrical Connection | |
Connection | M12x1-Male, 4-pin, A-coded; Cable with connector, 0.20 m, PUR |
Polarity Reversal Protected | Yes |
Inductive Sensors : Electrical Data | |
Protection Class | II |
Ripple | 10 % |
Switching Frequency | 5000 Hz |
Operating Voltage Ub | 10 to 30 VDC |
Current (Ie) | 200 mA |
Inductive Sensors : Range/Distance | |
Measuring Range | 2 mm |
Assured Operating Distance Sa | 1.6 mm |
Real Switching Distance sr | 2 mm |
Inductive Sensors : Physical and Environmental Characteristics | |
Dimension | Ø 8 x 50 mm |
Weight | - |
Installation | for flush mounting |
Operating Temperature | -25 to 70 °C |
Housing | Brass, Nickel-free coated |
IP Rating | IP68 |
Tightening Torque | 3 Nm |
MTTF | 595 a |
Standards and Approvals | CE, UKCA, cULus, WEEE, IEC 60947-5-2 |
