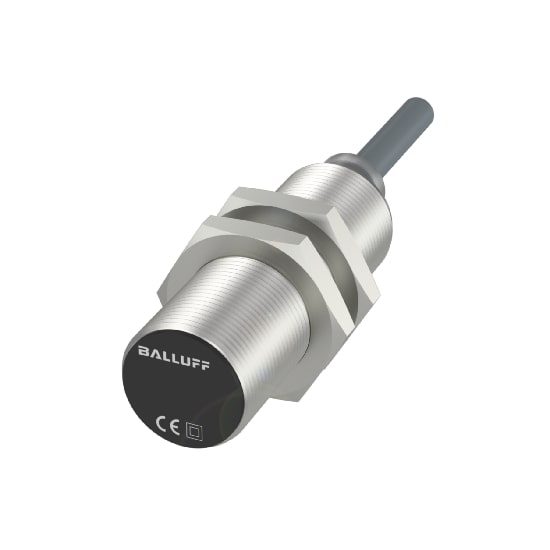

BALLUFF BES008E INDUCTIVE STANDARD SENSOR

BALLUFF BES008E INDUCTIVE STANDARD SENSOR
  • Model: BES008E
$0.00
Ex Tax: $0.00

BALLUFF BES008E FEATURES

  • Connection: Cable, 2.00 m, PVC
  • Operating temperature: -40 to 85 °C
  • IP rating: IP68
  • Shielded and unshielded versions
  • Plug or cable connection
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

BALLUFF BES008E INTRODUCTION

Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.


As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES008E INDUCTIVE STANDARD SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the BES03RL and BES03TF models in the BALLUFF Inductive Standard Sensors.


BALLUFF BES008E CERTIFICATIONS



Inductive Sensors : Interface
Output Characteristic PNP normally open (NO)
Inductive Sensors : Electrical Connection
Connection Cable, 2.00 m, PVC
Polarity Reversal Protected Yes
Inductive Sensors : Electrical Data
Protection Class II
Ripple 15 %
Switching Frequency 1300 Hz
Operating Voltage Ub 10 to 30 VDC
Current (Ie) 200 mA
Inductive Sensors : Range/Distance
Measuring Range 8 mm
Assured Operating Distance Sa 6.4 mm
Real Switching Distance sr 8 mm
Inductive Sensors : Physical and Environmental Characteristics
Dimension 8 mm
Weight -
Installation Ø 18 x 55 mm
Operating Temperature -40 to 85 °C
Housing for flush mounting
IP Rating IP68
Tightening Torque 25 Nm
MTTF 465 a
Standards and Approvals CE, UKCA, cULus, WEEE, IEC 60947-5-2
