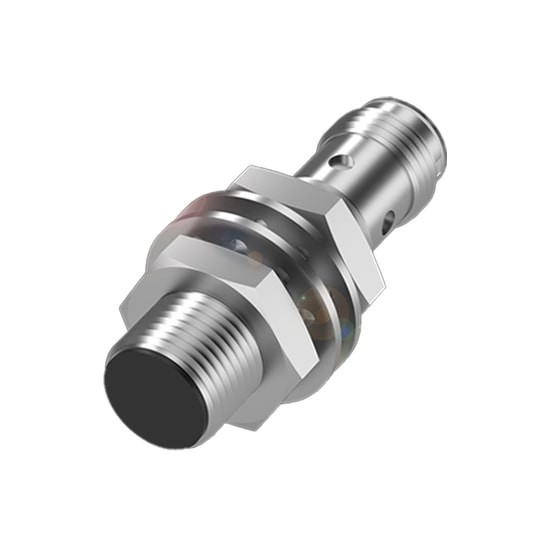

BALLUFF BES00EF INDUCTIVE STANDARD SENSOR

BALLUFF BES00EF INDUCTIVE STANDARD SENSOR
  • Model: BES00EF
$0.00
Ex Tax: $0.00

    BALLUFF BES00EF Features

    • Connection: M12x1-Male, 4-pin, A-coded
    • Operating temperature: -25 to 70 °C
    • IP rating: IP68
    • Shielded and unshielded versions
    • Plug or cable connection
    Over 40 Years in Business
    Over 40 Years in Business
    Successful track record across Canada
    Full Engineering Services
    Full Engineering Services
    A powerhouse to provide consultation, training, and support
    Strong Brand Portfolio
    Strong Brand Portfolio
    Top-notch products from superb global and local suppliers
    Advanced Technologies
    Advanced Technologies
    From legacy and mainstream to advanced Industry 4.0

    BALLUFF BES00EF Introduction

    Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

    The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.


    BALLUFF BES00EF CERTIFICATIONS



    Inductive Sensors : Interface
    Switching Output PNP normally open (NO)
    Output Characteristic No
    Inductive Sensors : Electrical Connection
    Connection M12x1-Male, 4-pin, A-coded
    Polarity Reversal Protected Yes
    Short-circuit Protection Yes
    Inductive Sensors : Electrical Data
    Protection Class II
    Ripple 15 %
    Switching Frequency 2500 Hz
    Operating Voltage Ub 10 to 30 VDC
    Current (Ie) 200 mA
    Inductive Sensors : Range/Distance
    Measuring Range No
    Assured Operating Distance Sa 3.2 mm
    Real Switching Distance sr 4 mm
    Inductive Sensors : IO-Link
    IO-Link Profil IDs No
    IO-Link Function Classes No
    Supported IO-Link Profiles No
    Inductive Sensors : Physical and Environmental Characteristics
    Dimension Ø 12 x 45 mm
    Installation for flush mounting
    Operating Temperature -25 to 70 °C
    Housing Brass, Nickel-free coated
    IP Rating IP68
    MTTF 640 a
    Standards and Approvals CE, UKCA, cULus, WEEE, IEC 60947-5-2
