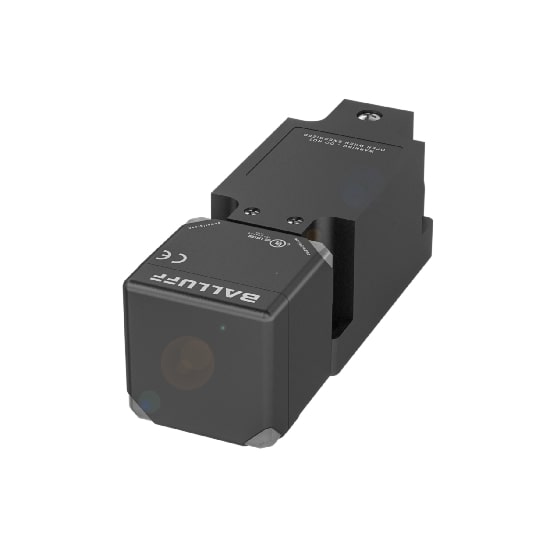

BALLUFF BES05YW INDUCTIVE STANDARD SENSOR
- Model: BES05YW
BALLUFF BES05YW FEATURES
- Operating temperature: -25 to 85 °C
- IP rating: IP67
- Polarity reversal protected: yes
- Short-circuit protection: synchronizing
- Shielded and unshielded versions
- Plug or cable connection
BALLUFF BES05YW INTRODUCTION
Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.
The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.
As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES05YW INDUCTIVE STANDARD SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the BES00KY and BES00KZ models in the BALLUFF Inductive Standard Sensors.
BALLUFF BES05YW CERTIFICATIONS
Inductive Sensors : Interface | |
Output Characteristic | NO/NC |
Inductive Sensors : Electrical Connection | |
Connection | - |
Polarity Reversal Protected | Yes |
Inductive Sensors : Electrical Data | |
Protection Class | II |
Ripple | - |
Switching Frequency | - |
Operating Voltage Ub | 20 to 275 VDC, 20 to 253 VAC |
Current (Ie) | 500 mA |
Inductive Sensors : Range/Distance | |
Measuring Range | - |
Assured Operating Distance Sa | - |
Real Switching Distance sr | 20 mm |
Inductive Sensors : Physical and Environmental Characteristics | |
Dimension | 40 x 40 x 118 mm |
Weight | - |
Installation | for flush mounting |
Operating Temperature | -25 to 85 °C |
Housing | Plastic |
IP Rating | IP67 |
Tightening Torque | 1.2 Nm |
MTTF | 540 a |
Standards and Approvals | CE, UKCA, cULus, WEEE, CCC, IEC 60947-5-2 |
