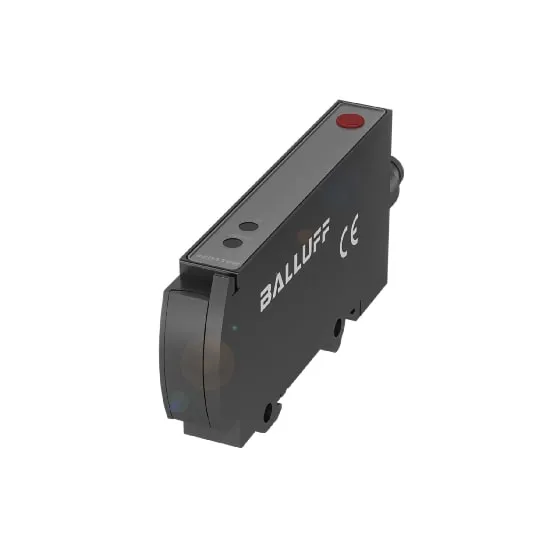

BALLUFF BFB0002 FIBER-BASED DEVICES FOR PLASTIC AND GLASS FIBER

Introduction

BFB fiber-based devices for plastic and glass fibers from Balluff are used when a conventional optical sensor would be too large or too rigid for the application. They can be combined with plastic or glass fiber optics for a complete sensor so that, depending on the application, the maximum amount of flexibility is available to you.

Balluff large selection of plastic fiber optics can be used especially when requirements for robustness or resistance to environmental temperatures or chemicals are not too ideal. We do, however, have high-temperature-resistant fibers available in our range of products. With glass fiber optics, we also offer tread-resistant, temperature-resistant, and chemical-resistant variants.

Certifications

Features

• Connection: Connector, M8x1-Male, 4-pin
• Operating temperature: -20 to 60 °C

• IP rating: IP64
• Series: 75K
• Light type: LED, red light
• Range: depends on fiber optics
• Input function: Same function as button, Key disable on/off

• Very fast – up to 8 kHz
• High positioning accuracy
• Flexibly mountable, simple to install
