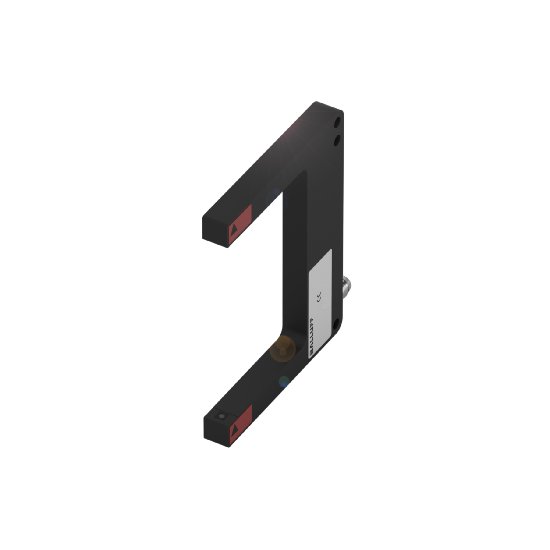

BALLUFF BGL002U FORK SENSOR METAL
BALLUFF BGL002U FORK SENSOR METAL
- Model: BGL002U
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
Balluff BGL series fork sensors have a transmitter and receiver in one housing that are already aligned. This reduces effort and saves valuable time during commissioning and facilitates reliable processes.
In terms of accuracy, the fork sensors from Balluff are unrivaled for small-component and detail detection as well as operational reliability. Achieve the best results with Balluff laser fork sensors for precise positioning, secure detection of fast movement sequences, small parts in robotics, and automation.
Certifications
Features
- Connection: Connector, M8x1-Male, 3-pin
- Operating temperature: -10 to 45 °C
- IP rating: IP67
- Series: A
- Principle of optical operation: Through-beam sensor
- Fork opening: 80 mm
- Light type: Laser red light
- Fork widths from 5 to 220 mm with standardized mounting holes
- Robust metal housing
Sensor : Basic features | |
Approval/Conformity | CE, cULus, WEEE, UKCA |
Basic standard | IEC 60947-5-2 |
Sensor : Display/Operation | |
Function Indicator | _ |
Power Indicator | _ |
Sensor : Electrical Connection | |
Cable diameter D | _ |
Cable length L | _ |
Number of conductors | _ |
Sensor : Electrical Data | |
Operating Voltage Ub | 10 to 30 VDC |
Output Resistance Ra | _ |
Protection Class | _ |
Switching Frequency | 5000 Hz |
Sensor : Environmental Conditions | |
EN 60068-2-27, Shock | Half-sinus, 30 g, 11 ms, 3x6 |
EN 60068-2-6, Vibration | 55 Hz, amplitude 1 mm, 3x30 min |
Sensor : Functional Safety | |
MTTF (40 °C) | 195 a |
Sensor : Interface | |
Switching Output | NPN normally open/normally closed (NO/NC) |
Sensor : Material | |
Housing Material | Zinc, Die casting, Painted |
Material Jacket | _ |
Material Sensing Surface | Glass |
Sensor : Mechanical Data | |
Dimension | 10 x 100 x 88 mm |
Installation | _ |
Size | _ |
Sensor : Range/Distance | |
Assured Operating Distance Sa | _ |
Rated Operating Distance Sn | _ |
Real Switching Distance sr | _ |
