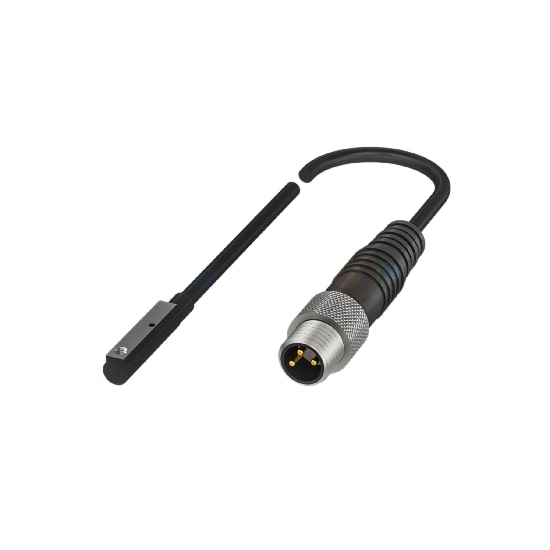

BALLUFF BMF00LH MAGNETIC FIELD SENSOR FOR C-SLOT
BALLUFF BMF00LH FEATURES
- Connection: Cable with connector, M8x1-Male, 3-pin, 1.20 m, PUR
- Operating temperature: -25 to 85 °C
- IP rating: IP67
- Emission: Group 1, Class B
- Reliable switching behavior
- Precise switch point
- Non-contacting and thus free from wear
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
BALLUFF BMF00LH INTRODUCTION
Magnetic field sensors for C-slots can be mounted flush, so they are suitable for space-critical applications. Since all of them can be installed from above, they also fit in those places where groove ends are closed and lateral installation is not possible.
Balluff also offers extremely short configurations that perfectly fit every gripper and short-stroke cylinder. The sensors detect the piston position without contact through the cylinder walls. The system is adaptable for cylinders and grippers with both strong and weak magnets.
BALLUFF BMF00LH CERTIFICATIONS
