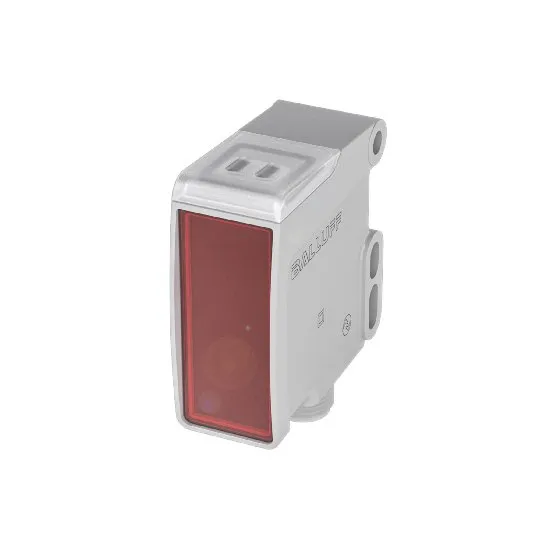

BALLUFF BOS02C0 RETROREFLECTIVE SENSOR

Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

Introduction


Whatever your application, Balluff offers you a wide range of retroreflective sensors. These enable you to reliably detect objects regardless of surface, color, and material. If you use a polarizing filter, our retroreflective sensors even enable you to detect shiny objects.

The transmitter and receiver are housed together in a single unit so that you can easily mount this light barrier and align it quickly with its generous mounting tolerances.


Certifications




Features


  • Connection: Connector, M12x1-Male, 4-pin
  • Operating temperature: -40 to 70 °C
  • IP rating: IP67, IP6K9K
  • Series: R254K
  • Principle of optical operation: Retroreflective sensor
  • Range: 0 to 8 m
  • Simple alignment thanks to generous mounting tolerances
  • Large reflectors for high ranges
  • Reliable detection – regardless of surface, color, and material
Sensor : Basic features
Approval/Conformity CE, cULus, WEEE, UKCA, Ecolab
Basic standard IEC 60947-5-2
Sensor : Display/Operation
Function Indicator _
Power Indicator _
Sensor : Electrical Connection
Cable diameter D _
Cable length L _
Number of conductors _
Sensor : Electrical Data
Operating Voltage Ub 10 to 30 VDC
Output Resistance Ra _
Protection Class II
Switching Frequency 1 kHz 2 kHz (Speed mode)
Sensor : Environmental Conditions
EN 60068-2-27, Shock Half-sinus, 30 g, 11 ms, 3x6
EN 60068-2-6, Vibration 10 to 55 Hz, amplitude 0.5 mm, 3x30 min
Sensor : Functional Safety
MTTF (40 °C) 327 a
Sensor : Interface
Switching Output Pin 2: PNP/NPN/push-pull NO/NC, Pin 4: Push-pull NO/NC
Sensor : Material
Housing Material PA 12, PA PACM 12
Material Jacket _
Material Sensing Surface PA PACM 12
Sensor : Mechanical Data
Dimension 20.4 x 62.7 x 49.5 mm
Installation _
Size _
Sensor : Range/Distance
Assured Operating Distance Sa _
Rated Operating Distance Sn 8 m Adjustable
Real Switching Distance sr _
