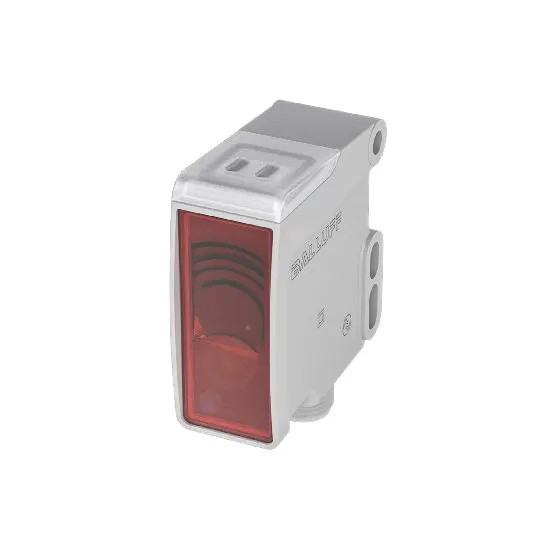

BALLUFF BOS02C2 DIFFUSE AND THROUGH-BEAM/ BACKGROUND SUPPRESSION SENSOR
BALLUFF BOS02C2 DIFFUSE AND THROUGH-BEAM/ BACKGROUND SUPPRESSION SENSOR
- Model: BOS02C2
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
Photoelectric sensors check presence, shape, color, distance, and thickness - optimized for robotics, automation, assembly, and handling. They are real experts with various strengths: detecting and counting parts, monitoring stack heights, through-glass detection, aligning small parts, detecting marks, fill level detection, and much more!
Certifications
Features
- Connection: Connector, M12x1-Male, 4-pin
- Operating temperature: -40 to 70 °C
- IP rating: IP67, IP6K9K
- Series: R254K
- Principle of optical operation: Diffuse sensor, triangulation
- Range: 30 to 500 mm
- Part recognition and counting
- Stack height monitoring
- Detection through glass
Sensor : Basic features | |
Approval/Conformity | CE, UKCA, cULus, WEEE, Ecolab |
Basic standard | IEC 60947-5-2 |
Sensor : Display/Operation | |
Function Indicator | _ |
Power Indicator | _ |
Sensor : Electrical Connection | |
Cable diameter D | _ |
Cable length L | _ |
Number of conductors | _ |
Sensor : Electrical Data | |
Operating Voltage Ub | 10 to 30 VDC |
Output Resistance Ra | _ |
Protection Class | II |
Switching Frequency | 1 kHz 2 kHz (Speed mode) |
Sensor : Environmental Conditions | |
EN 60068-2-27, Shock | Half-sinus, 30 g, 11 ms, 3x6 |
EN 60068-2-6, Vibration | 10 to 55 Hz, amplitude 0.5 mm, 3x30 min |
Sensor : Functional Safety | |
MTTF (40 °C) | 163.5 a |
Sensor : Interface | |
Switching Output | Pin 2: PNP/NPN/push-pull NO/ NC, Pin 4: Push-pull NO/NC |
Sensor : Material | |
Housing Material | PA 12, PA PACM 12 |
Material Jacket | _ |
Material Sensing Surface | PA PACM 12 |
Sensor : Mechanical Data | |
Dimension | 20.4 x 62.7 x 49.5 mm |
Installation | _ |
Size | _ |
Sensor : Range/Distance | |
Assured Operating Distance Sa | _ |
Rated Operating Distance Sn | 500 mm Adjustable |
Real Switching Distance sr | _ |
