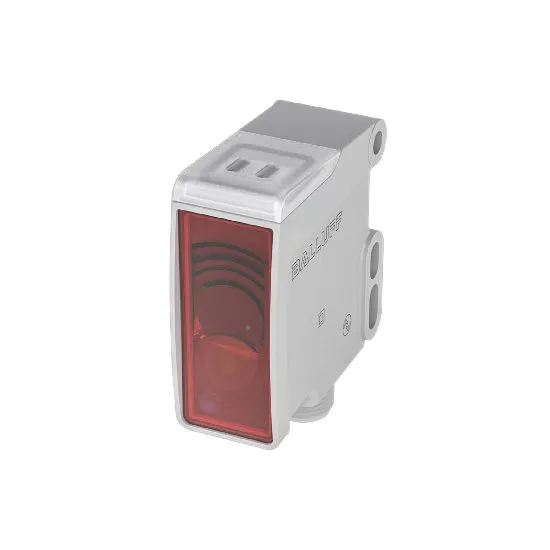

BALLUFF BOS02C3 DIFFUSE SENSOR WITH BACKGROUND SUPPRESSION

BALLUFF BOS02C3 DIFFUSE SENSOR WITH BACKGROUND SUPPRESSION
  • Model: BOS02C3
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

Introduction


Balluff diffuse sensors with background suppression detect objects within a set switching distance, without being affected by reflective backgrounds. Object and background can be differentiated very definitively, especially as these diffuse sensors are characterized by their low gray value shift and hysteresis.

Since the transmitter and receiver are housed together in a single unit to save space, you can easily mount Balluff diffuse sensors and align them quickly. In addition, the highly visible light beam with the versions available in red light, blue light, and lasers makes it easier for you to do this. With IO-Link, teach-in, or via potentiometer, you can easily adjust many sensor versions. Versions with fixed switching distances are also available.

Certifications




Features


  • Connection: M12x1-Male, 4-pin
  • Operating temperature: -40 to 70 °C
  • IP rating: IP67, IP6K9K
  • Series: R254K
  • Principle of optical operation: Diffuse sensor, triangulation
  • Range: 10 to 250 mm
  • Almost constant scanning range even with different reflectance
  • Only one electrical device without reflectors or separate receivers
  • With red light or the laser red light that is ideally suited for detecting small parts
Sensor : Basic features
Approval/Conformity CE, cULus, WEEE, UKCA, Ecolab
Basic standard IEC 60947-5-2
Sensor : Display/Operation
Function Indicator _
Power Indicator _
Sensor : Electrical Connection
Cable diameter D _
Cable length L _
Number of conductors _
Sensor : Electrical Data
Operating Voltage Ub 10 to 30 VDC
Output Resistance Ra _
Protection Class II
Switching Frequency 1 kHz 2 kHz (Speed mod)
Sensor : Environmental Conditions
EN 60068-2-27, Shock Half-sinus, 30 g, 11 ms, 3x6
EN 60068-2-6, Vibration 10 to 55 Hz, amplitude 0.5 mm, 3x30 min
Sensor : Functional Safety
MTTF (40 °C) 163.5 a
Sensor : Interface
Switching Output Pin 2: PNP/NPN/push-pull NO/ NC, Pin 4: Push-pull NO/NC
Sensor : Material
Housing Material PA 12, PA PACM 12
Material Jacket _
Material Sensing Surface PA PACM 12
Sensor : Mechanical Data
Dimension 20.4 x 62.7 x 49.5 mm
Installation _
Size _
Sensor : Range/Distance
Assured Operating Distance Sa _
Rated Operating Distance Sn 250 mm Adjustable
Real Switching Distance sr _
