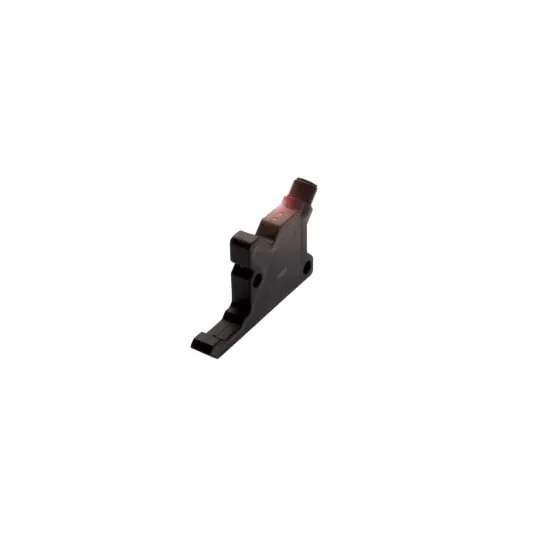

BALLUFF BWL001H ANGLE SENSOR

Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

Introduction


BWL angle sensors from Balluff are a logical development of Balluff's fork sensors for more demanding applications. Their special housing configuration and beam geometry enable objects to approach and be recognized from almost every direction.

Red light and laser variants guarantee a wide range of application scenarios: Such as when controlling the feed of flat and large objects, when counting and detecting objects in complex feeders, as well as in a variety of other applications in severe industrial environments.


Certifications




Features


  • Connection: Connector, M12x1-Male, 4-pin
  • Operating temperature: -10 to 60 °C
  • IP rating: IP67
  • Series: C
  • Principle of optical operation: Through-beam sensor
  • Light type: Infrared
  • Extremely flexible mounting thanks to its angled shape
  • High optical resolution and reproducibility
Sensor : Basic features
Approval/Conformity CE, WEEE, UKCA, cULus
Basic standard IEC 60947-5-2
Sensor : Display/Operation
Function Indicator _
Power Indicator _
Sensor : Electrical Connection
Cable diameter D _
Cable length L _
Number of conductors _
Sensor : Electrical Data
Operating Voltage Ub 10 to 30 VDC
Output Resistance Ra _
Protection Class II
Switching Frequency 1000 Hz
Sensor : Environmental Conditions
EN 60068-2-27, Shock Half-sinus, 30 g , 11 ms, 3x6, Half-sinus, 100 gn, 2 ms, 3x8000
EN 60068-2-6, Vibration 10 to 2000 Hz, amplitude 1 mm, 30 gn, 3x5 h
Sensor : Functional Safety
MTTF (40 °C) _
Sensor : Interface
Switching Output PNP normally open (NO)
Sensor : Material
Housing Material 1.4408 stainless steel, Powder coated
Material Jacket _
Material Sensing Surface Epoxy resin
Sensor : Mechanical Data
Dimension 14 x 51 x 90 mm
Installation _
Size _
Sensor : Range/Distance
Assured Operating Distance Sa _
Rated Operating Distance Sn _
Real Switching Distance sr _
