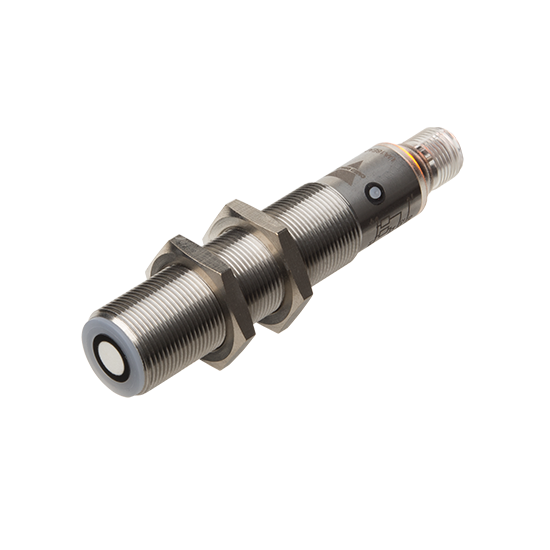

CARLO GAVAZZI UA18EAD04PKM1TI Ultrasonic Sensor
CARLO GAVAZZI UA18EAD04PKM1TI Ultrasonic Sensor
- Model: UA18EAD04PKM1TI
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
A family of diffuse ultrasonic sensors in Stainless steel housing and with sensing range from 50-400 mm, 100- 900 mm, and 200-1500 with a resolution as low as 1.0 mm. The sensor contains both an analog and a digital output. The output is either 0-10V or 4-20 mA and the digital output is NPN or PNP, NO or NC which forms a window detection. The sensor is the ideal choice for distance measurement, level measurement, diameter measurement, or loop control. Due to microprocessor control, the digital filtering makes the sensor immune to most electromagnetic interferences.
Certifications
Features
- Ultrasonic Sensor, Diffuse Reflective
- M18 Stainless Steel INOX housing, M12 Connector
- Sn 50-400mm, Analogue Output 0-10V+ PNP
- Supply Voltage 15-30VDC, Operating Temperature -20-60C
- Response time<50ms, Switching Frequency 10Hz
- IP67, Teach-in
