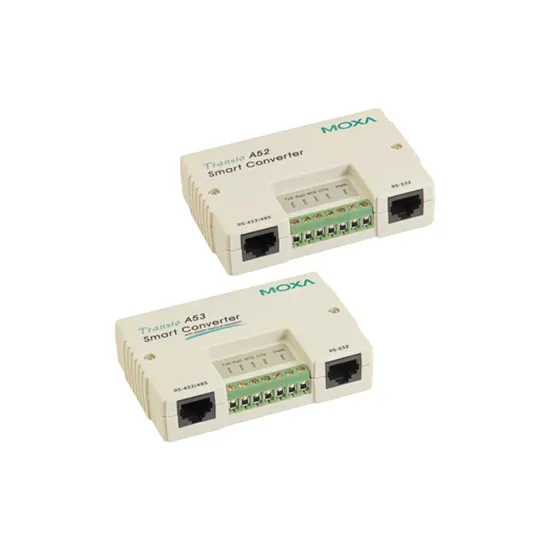

MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter

Tags: Industrial Edge Connectivity , Serial Converters , Serial-to-Serial Converters , RS-232 to RS-422/485 Converters , RS-232 to RS-422 Converters , RS-232 to RS-485 Converters , Converters , MOXA Transio A52/A53 Series

Model: A53-DB9F w/ Adapter

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA A53-DB9F W/ Adapter FEATURES

2 x RS-232/422/485 Serial Ports (10-pin RJ45 connector)
2 KV Isolation protection for serial ports
9 to 30 VDC input power range
IP30-rated Plastic housing
Desktop installation
0 to 55°C operating temperature
DB9F Serial cable
Power Adapter Included

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA A53-DB9F W/ Adapter INTRODUCTION

The A52 and A53 are general RS-232 to RS-422/485 converters designed for users who need to extend the RS-232 transmission distance and increase networking capability.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the A52-DB9F w/o Adapter and A53-DB9F w/o Adapter models in the MOXA Transio A52/A53 Series.

MOXA A53-DB9F W/ Adapter CERTIFICATIONS

Converter : Interface
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
Isolation	Yes : 2 KV
USB	No
Serial port	Yes : 2 x RS-232/422/485 Ports (10-pin RJ45 connector)
Other ports	No
Converter : Converter specifications
Maximum data transmission distance	-
Minimum output power converter	-
Sensitivity to receiving information	-
Wavelength	-
Data transfer speed ( Baudrate )	Automatic baudrate detection
Require cable diameter	-
Flow Control	RTS/CTS
Protocols	-
converter : Serial Signals
RS-232 Signals	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Signals	Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND
RS-485-2w Signals	Data+, Data-, GND
RS-485-4w Signals	Tx+, Tx-, Rx+, Rx-, GND
Converter : Power Requirements
Power Consumption (Output Adapter)	195 mA @ 9 VDC
Power Input Plugin ( Redundant )	No
Overload Current Protection	Supported
Reverse Polarity Protection	No
Input Voltage	9 to 30 VDC
Input Current	195 mA @ 9 VDC
Connector	Power input jack
Converter : General
Fan / Fanless	-
MTBF	1,870,854 hrs
Converter : Physical Characteristics
Dimensions	90 x 60 x 21 mm (3.54 x 2.36 x 0.83 in)
Housing	Plastic
Installation	Desktop
Operating Temperature	0 to 55°C (32 to 131°F)
Operation Humidity	5% to %95 RH non-condensing
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-3; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature	-20 to 75°C (-4 to 167°F)
Weight	85 g (0.19 lb)
Converter : LED Indicators
LED Per Port	Yes
Power	Yes
