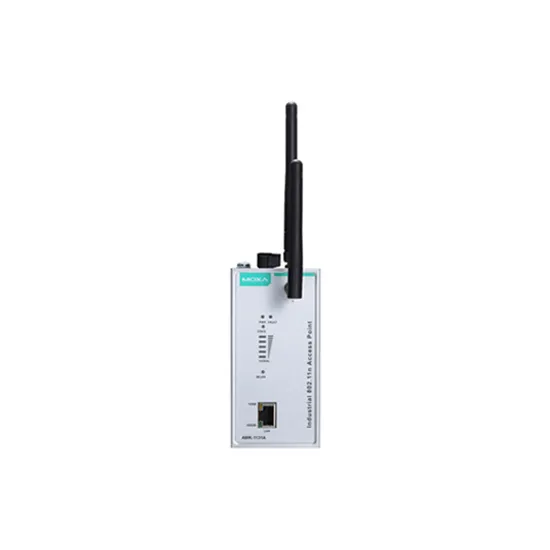

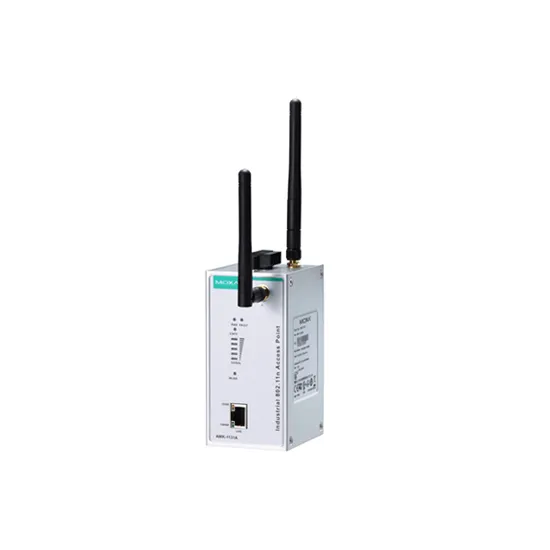

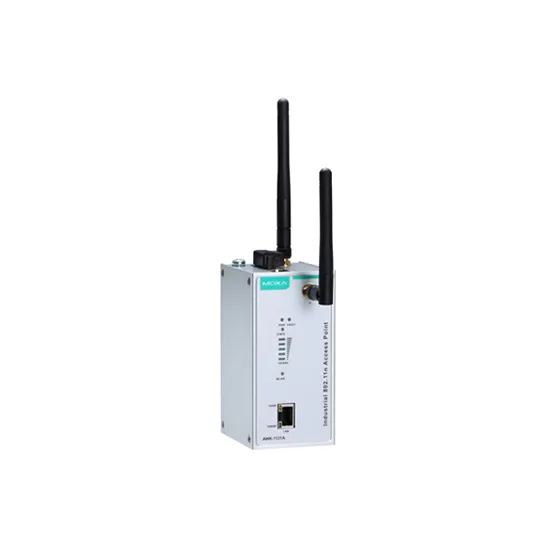

MOXA AWK-1131A-EU Wireless AP/Client
MOXA AWK-1131A-EU Wireless AP/Client
- Model: AWK-1131A-EU
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
MOXA AWK-1131A-EU INTRODUCTION
The AWK-1131A industrial wireless AP/client meets the growing need for faster data transmission speeds by supporting IEEE 802.11n technology with a net data rate of up to 300 Mbps. The AWK-1131A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply. The AWK-1131A can operate on either the 2.4 or 5 GHz bands and is backward-compatible with existing 802.11a/b/g deployments to future-proof your wireless investments.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA AWK-1131A-EU Wireless AP/Client online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find AWK-1131A-EU-T and AWK-1131A-JP in the MOXA AWK-1131A Series.
MOXA AWK-1131A-EU CERTIFICATIONS
Access Point : Interfaces | |
Modulation Type | DSSS, MIMO-OFDM, OFDM |
10/100/1000BaseT(X) Ports | 1 x RJ45 |
PoE Ports | No |
Wireless Security | WEP encryption (64-bit and 128-bit), WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2-Personal |
WLAN Operation Mode | Access point, Client, Sniffer |
Security | HTTPS/SSL, RADIUS, SSH |
WLAN Standards | 802.11a/b/g/n, 802.11i Wireless Security |
Transmission Rates | 802.11b: 1 to 11 Mbps, 802.11a/g: 6 to 54 Mbps, 802.11n: 6.5 to 300 Mbps |
Digital Inputs | No |
Console Port | 1 x RS-232, 8-pin RJ45 |
Access Point : Power Requirement | |
Input Current | 0.56 A @ 12 VDC, 0.14 A @ 48 VDC |
Input Voltage | 12 to 48 VDC |
Power Consumption | 6.96 W (max.) |
Reverse Polarity Protection | Supported |
Access Point : Physical Characteristics | |
Humidity | 5 to 95% (non-condensing) |
Dimensions Packaged | 58 x 115 x 70 mm (2.29 x 4.53 x 2.76 in) |
IP Rating | IP30 |
Weight (PACKAGED) | 0.307kg (0.68 lb) |
Standards and Certifications | IEEE 802.1X for authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) |
Safety | EN 60950-1, UL 60950-1 |
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class B |
Housing | Metal |
EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF |
Installation | DIN-rail mounting, Wall mounting (with optional kit) |
Operating Temperature | 0 to 60°C (32 to 140°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Access Point : General | |
Management | DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, Wireless Search Utility, VLAN, MXview, MXconfig |
MTBF | 749,476 hrs |
LED Indicators | PWR, FAULT, STATE, SIGNAL, WLAN, LAN |
