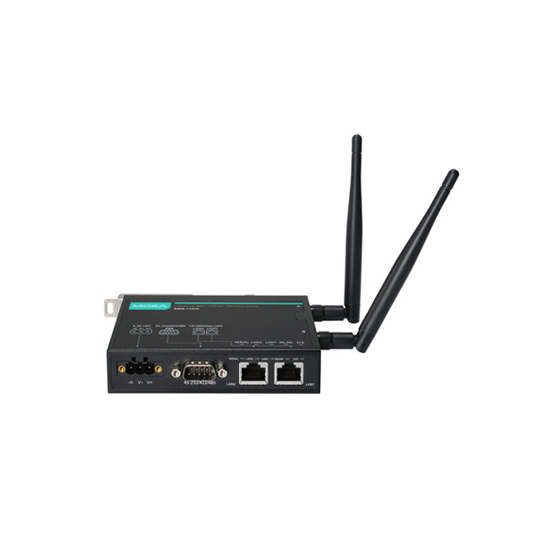

MOXA AWK-1137C-US-T Wireless Access Point
MOXA AWK-1137C-US-T Wireless Access Point
- Model: AWK-1137C-US-T
$0.00
Ex Tax: $0.00
MOXA AWK-1137C-US-T FEATURES
- 2 x 10/100BaseT(X) Ports (RJ45 connector)
- IEEE 802.11a/b/g/n compliant client
- Comprehensive interfaces with one serial port and two Ethernet LAN ports
- Client-based millisecond-level Turbo Roaming
- 2x2 MIMO future-proof technology
- Integrated robust antenna and power isolation
- Anti-vibration design
- Compact size for your industrial applications
- Easy setup and deployment with AeroMag
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
MOXA AWK-1137C-US-T INTRODUCTION
The AWK-1137C is an ideal client solution for industrial wireless mobile applications. It enables WLAN connections for both Ethernet and serial devices and is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The AWK-1137C can operate on either the 2.4 or 5 GHz bands and is backward-compatible with existing 802.11a/b/g deployments to futureproof your wireless investments.
MOXA AWK-1137C-US-T CERTIFICATIONS
Access Point : Interfaces | |
Modulation Type | DSSS, MIMO-OFDM, OFDM |
10/100/1000BaseT(X) Ports | 2 x RJ45 |
PoE Ports | No |
Wireless Security | WEP encryption (64-bit and 128-bit), WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2-Personal |
WLAN Operation Mode | Client, Client-Router, Slave, Sniffer |
Security | HTTPS/SSL, RADIUS, SSH |
WLAN Standards | 802.11a/b/g/n, 802.11i Wireless Security |
Transmission Rates | 802.11b: 1 to 11 Mbps, 802.11a/g: 6 to 54 Mbps, 802.11n: 6.5 to 300 Mbps |
Digital Inputs | No |
Console Port | - |
Access Point : Power Requirement | |
Input Current | - |
Input Voltage | 9 to 30 VDC |
Power Consumption | 11.7 W (max.) |
Reverse Polarity Protection | Yes |
Access Point : Physical Characteristics | |
Humidity | 5 to 95% (non-condensing) |
Dimensions Packaged | 77.1 x 115.5 x 26 mm (3.035 x 4.55 x 1.024 in) |
IP Rating | IP30 |
Weight (PACKAGED) | 0.47kg (1.03 lb) |
Standards and Certifications | IEEE 802.1Q for VLAN Tagging IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) |
Safety | EN 60950-1, UL 60950-1 |
EMC | EN 61000-6-2/-6-4, EN 55032/24 |
EMI | CISPR 22, FCC Part 15B Class A |
Housing | Metal |
EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF, |
Installation | DIN-rail mounting, Wall mounting (with optional kit) |
Operating Temperature | -40 to 75°C (-40 to 185°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Access Point : General | |
Management | DHCP Server/Client, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, Proxy ARP, Wireless Search Utility, VLAN, MXview, MXconfig |
MTBF | 1,125,942 hrs |
LED Indicators | SYS, LAN1, LAN2, WLAN, Serial |
