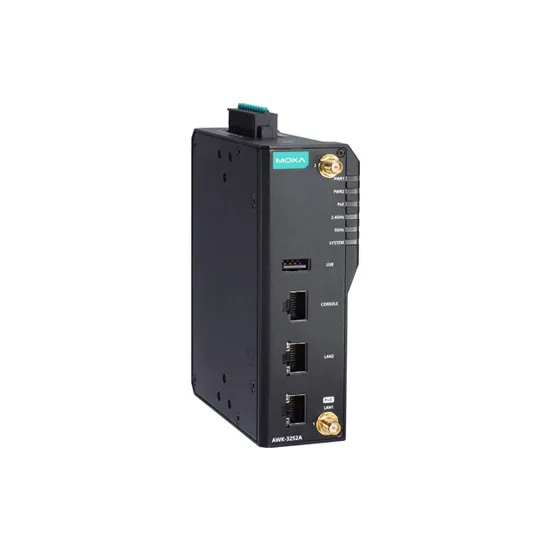

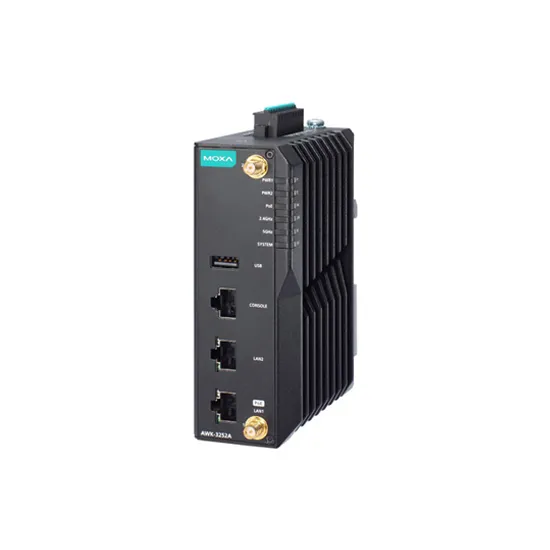

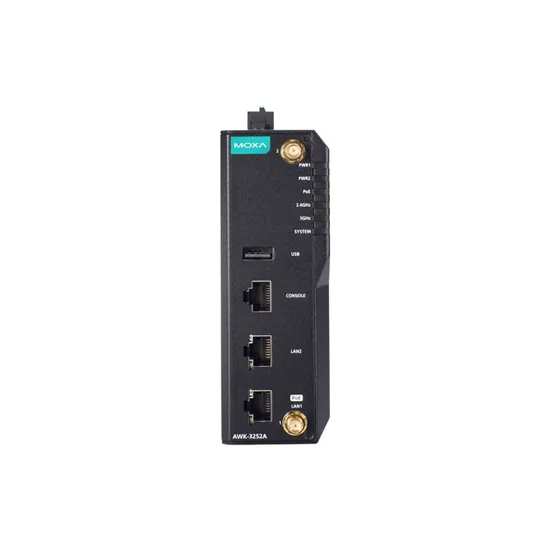

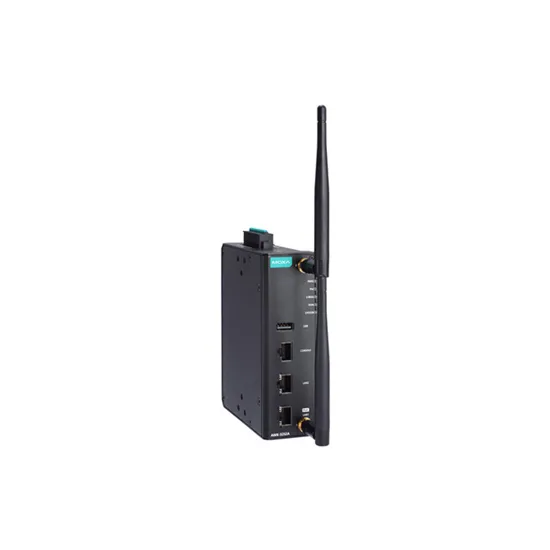

MOXA AWK-3252A-US Wireless AP/Bridge/Client
MOXA AWK-3252A-US Wireless AP/Bridge/Client
- Model: AWK-3252A-US
$0.00
Ex Tax: $0.00
MOXA AWK-3252A-US FEATURES
- Universal (UN) models with configurable country or region codes for more flexible deployment
- 1 x 10/100/1000BaseT(X) Port (RJ45 connector), 1 x PoE Port (10/100/1000BaseT(X), RJ45 connector)
- IEEE 802.11a/b/g/n/ac Wave 2 AP/bridge/client
- Concurrent dual-band Wi-Fi with aggregated data rates up to 1.267 Gbps
- Latest WPA3 encryption for enhanced wireless network security
- Easy network setup with Network Address Translation (NAT)
- Integrated antenna isolation
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
MOXA AWK-3252A-US INTRODUCTION
The AWK-3252A Series 3-in-1 industrial wireless AP/bridge/client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ac technology for aggregated data rates of up to 1.267 Gbps. The AWK-3252A complies with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-3252A can be powered via PoE to facilitate flexible deployment. The AWK-3252A can operate concurrently on both the 2.4 and 5 GHz bands and is backward-compatible with existing 802.11a/b/g/n deployments to future-proof your wireless investments.
MOXA AWK-3252A-US CERTIFICATIONS
Access Point : Interfaces | |
Modulation Type | - |
10/100/1000BaseT(X) Ports | 1 x RJ45 |
PoE Ports | 1 x RJ45 |
Wireless Security | HTTPS/SSL, RADIUS, SSH |
WLAN Operation Mode | Access point, Client, Client-Router, Master, Slave, Sniffer |
Security | HTTPS/SSL, RADIUS, SSH |
WLAN Standards | IEEE 802.11a/b/g/n/ac |
Transmission Rates | 2.4 GHz: 802.11b: 1 to 11 Mbps; 802.11g: 6 to 54 Mbps; 802.11n: 6.5 to 400 Mbps, 5 GHz: 802.11a: 6 to 54 Mbps; 802.11n: 6.5 to 300 Mbps; 802.11ac: 6.5 to 867 Mbps |
Digital Inputs | 2, Max. input current: 8 mA, +13 to +30 V for state 1, +3 to -30 V for state 0 |
Console Port | RS-232, 8-pin RJ45 |
Access Point : Power Requirement | |
Input Current | 12-48 VDC, 2.2-0.5 A |
Input Voltage | 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet |
Power Consumption | 28.4 W (max.) |
Reverse Polarity Protection | - |
Access Point : Physical Characteristics | |
Humidity | 5 to 95% (non-condensing) |
Dimensions Packaged | 45 x 130 x 100 mm (1.77 x 5.12 x 3.94 in) |
IP Rating | IP30 |
Weight (PACKAGED) | 700 g (1.5 lb) |
Safety | IEC 60950-1, IEC 62368-1, UL 62368-1 |
EMC | EN 61000-6-2/-6-4, EN 55032/35 |
EMI | CISPR 32, FCC Part 15B Class A |
Housing | Metal |
EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V/m, IEC 61000-4-8 PFMF: 30 A/m |
Installation | DIN-rail mounting, Wall mounting (with optional kit) |
Operating Temperature | -25 to 60°C (-13 to 140°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Access Point : General | |
MTBF | 653,801 hrs |
LED Indicators | PWR1, PWR2, PoE, SYS, 2.4G, 5G, LAN1, LAN2 |
