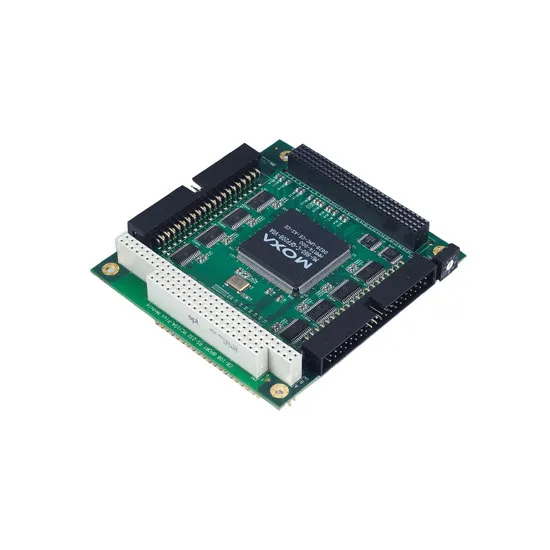

MOXA CB-108 Serial Module Board






MOXA CB-108 Serial Module Board
- Model: CB-108
$0.00
Ex Tax: $0.00
MOXA CB-108 FEATURES
- 8 x RS-232 Serial ports (40-pin box header connector)
- Supports maximum 921.6 kbps baud rate
- Compatible Drivers with Windows
- 5 VDC input power range
- 0 to 55°C operating temperature

Over 40 Years in Business
Successful track record across Canada

Full Engineering Services
A powerhouse to provide consultation, training, and support

Strong Brand Portfolio
Top-notch products from superb global and local suppliers

Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
MOXA CB-108 INTRODUCTION
The CB-108 PC/104-Plus modules come with 8 RS-232 ports and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications. The CB-108 modules can be used on the PC/104-Plus (PCI) bus, and provide a reliable, high-performance solution for multiport serial communication.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA CB-108 Serial Module Board online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the CB-108-T model in the MOXA CB-108 Series.
MOXA CB-108 CERTIFICATIONS
Multiport Serial Boards : Serial Interface | |
Comm. Controller | 16C550C or compatible x 4 |
Number of Ports | 8 |
Bus interface | PC/104 plus bus |
Serial Standards | RS-232 |
Connector | 40-pin box header |
Baudrate | 50 bps to 921.6 kbps |
Stop Bits | 1, 1.5, 2 |
Parity | None, Even, Odd, Space, Mark |
Flow Control | None, RTS/CTS, XON/XOFF |
Max. No. of Boards per PC | 8 |
Data Bits | 5, 6, 7, 8 |
FIFO | 128 bytes |
Isolation | No |
Multiport Serial Boards : Serial Signals | |
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422 | - |
RS-485-4w | - |
RS-485-2w | - |
Multiport Serial Boards : Serial Software Features | |
Windows Drivers | Windows CE 5.0/6.0, and Windows XP Embedded operating systems |
Linux Drivers | - |
UNIX Drivers | - |
Multiport Serial Boards : Power Requirements | |
Input Current | 153 mA @ 5 VDC |
Input Voltage | 5 VDC |
Multiport Serial Boards : General | |
MTBF | 403,631 hrs |
LED Indicators | Built-in Tx, Rx LEDs for each port |
Multiport Serial Boards : Physical Characteristics | |
Dimensions | 90 x 96 mm (3.54 x 3.78 in) |
Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-3; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB |
Operating Temperature | 0 to 55°C (32 to 131°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Operation Humidity | 5 to 95% (non-condensing) |
