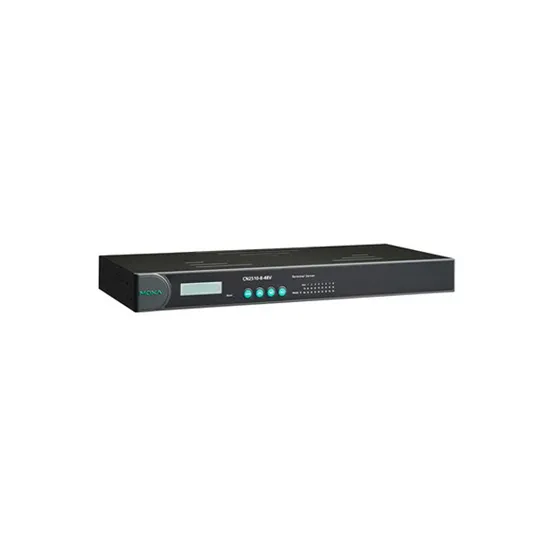

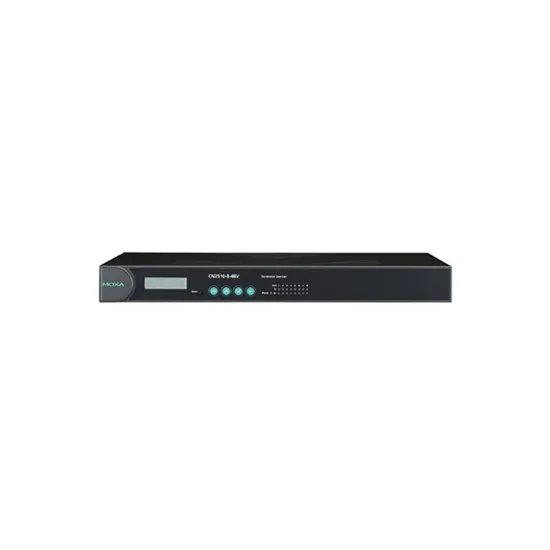

MOXA CN2510-8 Terminal Server
MOXA CN2510-8 FEATURES
- 1 x 10/100Mbps T(x) port and 8 x RS-232 Serial ports
- LCD control panel for easy on-site management
- Supports PPP/SLIP with RADIUS authentication and RIP I/II routing protocols
- Real COM/TTY drivers for Windows and Linux
- 100 to 240 VAC input power
- Metal body design
- 0 to 55°C Operating temperature
MOXA CN2510-8 INTRODUCTION
For most companies, the performance of IT equipment is critical to daily operation. To keep a server, router, PBX, or leased-line modem working properly, it is important to minimize downtime and troubleshoot faulty devices quickly. KVM is commonly used for in-band management of devices that are equipped with a screen and keyboard. However, RS-232 console access is often used as a last resort for all devices.
Remote Console Management
The CN2510 provides an easy console management solution in a convenient 1U rackmount package. With its RS-232 ports, connections are easily established to the console ports of network equipment, such as UNIX servers or routers, for centralized management of the attached devices. Each device’s RS-232 console port becomes a network-accessible node, giving users Telnet access from anywhere on the network for configuration and management of the device. Full modem control signals are supported, ensuring compatibility with a wide range of serial peripherals.
User Authentication
It is very important that access is strictly controlled in a console management solution, and user privileges should be validated before a console port connection is allowed. The CN2510’s authentication procedure involves verifying the username and password against an internal database or a RADIUS server.
Dial-back
When a dial-up connection is used for out-of-band management, the CN2510 provides a convenient dial-back function. Instead of accepting a connection request directly, the CN2510 calls back the management host to establish the connection. The dial-back function helps ensure that only registered users or hosts can remotely connect to the network through the CN2510, and helps to minimize long-distance phone costs.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA CN2510-8 Terminal Server online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the CN2510-16 and CN2510-8-48V models in the MOXA CN2510 Series.
MOXA CN2510-8 CERTIFICATIONS
