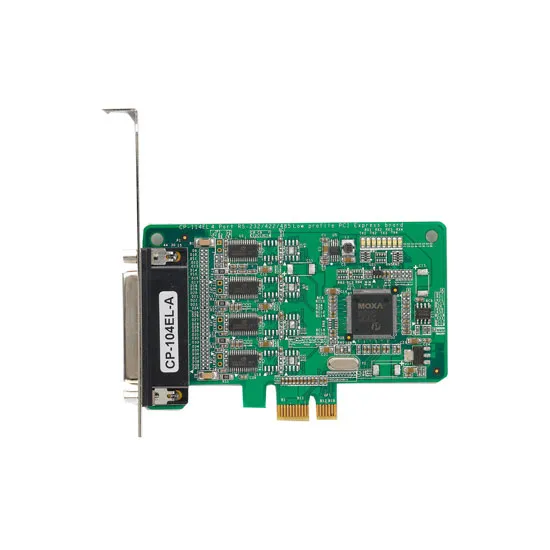

MOXA CP-104EL-A-DB9M PCI Express Serial Board

Tags: Industrial Edge Connectivity , Multiport Serial Boards , PCI Express Serial Board , Express Serial Board , Serial Board , PCIe/UPCI/PCI Serial Cards , PCI Serial Board , PCI , MOXA CP-104EL-A Series

Model: CP-104EL-A-DB9M

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA CP-104EL-A-DB9M FEATURES

4 x RS-232 Serial Ports
PCI Express 1.0 compliant
Supports maximum 921.6 kbps baud rate
128-byte FIFO and on-chip H/W, S/W flow control
Low-profile form factor fits small-sized PCs
Compatible Drivers with Windows, Linux, and UNIX
Easy maintenance with built-in LEDs and management software
0 to 55°C operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA CP-104EL-A-DB9M INTRODUCTION

The CP-104EL-A is a smart, 4-port PCI Express board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators and supports many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the board’s 4 RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-104EL-A provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and its PCI Express x1 classification allows it to be installed in any PCI Express slot.

Smaller Form Factor

The CP-104EL-A is a low-profile board that is compatible with any PCI Express slot. The board requires only a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA CP-104EL-A-DB9M PCI Express Serial Board online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the CP-104EL-A-DB25M model in the MOXA CP-104EL-A Series.

MOXA CP-104EL-A-DB9M CERTIFICATIONS

Multiport Serial Boards : Serial Interface
Comm. Controller	16C550C compatible
Number of Ports	4
Bus interface	PCI Express 1.0
Serial Standards	RS-232
Connector	DB44 female
Baudrate	50 bps to 921.6 kbps (supports non-standard baudrates)
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, RTS/CTS, XON/XOFF
Data Bits	5, 6, 7, 8
FIFO	128 bytes
Multiport Serial Boards : Serial Software Features
Windows Drivers	DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers	Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers	QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6
Multiport Serial Boards : Power Requirements
Power requirement	Input Current: 805 mA @ 3.3 VDC
Multiport Serial Boards : General
MTBF	3,601,447 hrs
Multiport Serial Boards : Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Multiport Serial Boards : Physical Characteristics
Dimensions	67.21 x 103 mm (2.65 x 4.06 in)
Standards and Certifications	EMC, EMI, EMS, RoHS, CRoHS, WEEE
Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature	-20 to 85°C (-4 to 185°F)
Operation Humidity	5 to 95% (non-condensing)
