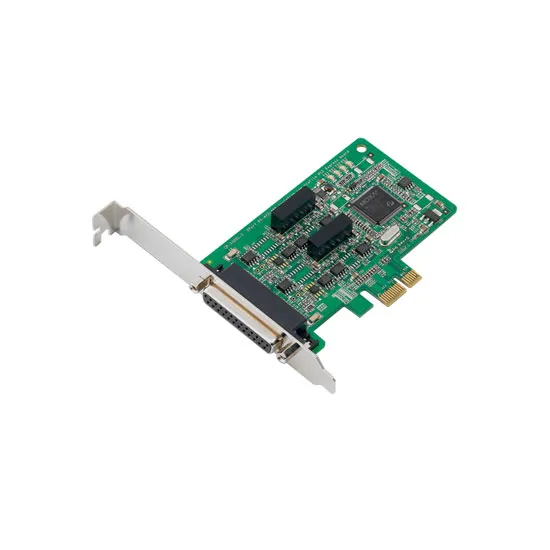

MOXA CP-132EL-DB9M PCI Express Serial Board
MOXA CP-132EL-DB9M PCI Express Serial Board
- Model: CP-132EL-DB9M
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
The CP-132EL and CP-132EL-I are 2-port PCI Express boards designed for industrial automation applications that require a long-distance, multipoint, PC-based data acquisition solution.
The CP-132EL/EL-I boards have two RS-422/485 serial ports, each of which can achieve data rates up to 921.6 kbps. In RS-485 mode, the boards can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long-distance RS-485 communication, choose the CP-132EL-I model, which comes with 2 kV electrical isolation protection to prevent equipment damage.
Moxa continues to support a wide variety of operating systems, and the CP-132EL/EL-I boards are no exception. Reliable Windows and Linux drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.
Certifications
Features
- 2 x RS-422/485 Serial Ports
- PCI Express 1.0 compliant
- 921.6 kbps maximum baudrate for fast data transmission
- 128-byte FIFO and on-chip S/W flow control
- Low-profile form factor fits small-sized PCs
- Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
- Easy maintenance with built-in LEDs and management software
Multiport Serial Boards : Serial Interface | |
Comm. Controller | 16C550C compatible |
Number of Ports | 2 |
Bus interface | PCI Express 1.0 |
Serial Standards | RS-422, RS-485 |
Connector | DB25 female |
Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
Stop Bits | 1, 1.5, 2 |
Parity | None, Even, Odd, Space, Mark |
Flow Control | None, XON/XOFF |
Data Bits | 5, 6, 7, 8 |
FIFO | 128 bytes |
Multiport Serial Boards : Serial Software Features | |
Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x |
UNIX Drivers | Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6, QNX 6 |
Multiport Serial Boards : Power Requirements | |
Power requirement | 548 mA @ 3.3 VDC |
Multiport Serial Boards : General | |
MTBF | 4,147,133 hrs |
Multiport Serial Boards : Physical Characteristics | |
Dimensions | 67.21 x 101.97 mm (2.65 x 4.08 in) |
Standards and Certifications | EMC, EMI, EMS, RoHS, CRoHS, WEEE |
Storage Temperature | -20 to 85°C (-4 to 185°F) |
Operation Humidity | 5 to 95% (non-condensing) |
