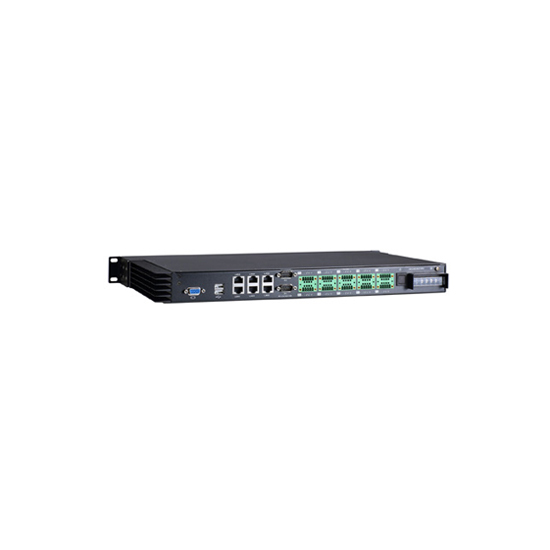

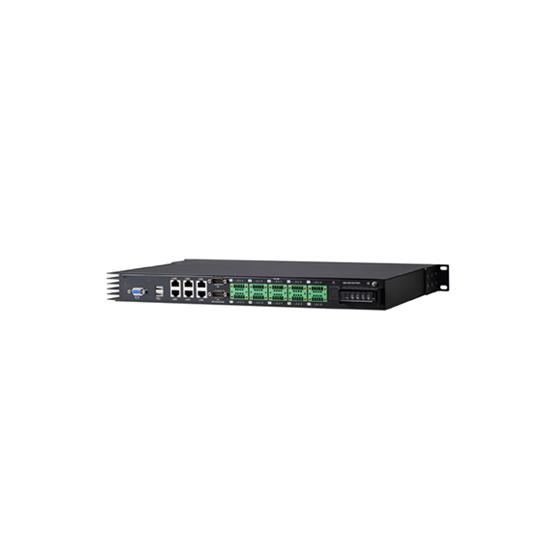

MOXA DA-681A-I-DPP-LX Rackmount Industrial Computer
MOXA DA-681A-I-DPP-LX Rackmount Industrial Computer
- Model: DA-681A-I-DPP-LX
$0.00
Ex Tax: $0.00
MOXA DA-681A-I-DPP-LX FEATURES
- CPU Intel® Celeron 1047UE
- Pre-installed Linux Debian 8 (64-bit)
- 6 x 10/100/1000 Mbps Ethernet ports
- 2 x RS-232/422/485 and 10 x RS-485 Serial ports
- 2 KV isolation protection for serial ports
- Metal body design
- 19-inch rack mounting
- 100 to 240 VAC/VDC dual power inputs
- -25 to 55°C operating temperature range
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
MOXA DA-681A-I-DPP-LX INTRODUCTION
The DA-681A Series x86-based rackmount embedded computers are designed for control, monitoring, data acquisition, and protocol conversion applications. With their high density and robust design, the DA-681A computers are suitable for industrial automation applications, such as power automation, transportation, oil and gas, and factory automation.
The DA-681A is based on the 3rd Gen Intel® Core™ Celeron 1047UE 1.4 GHz CPU and the HM65 chipset, which supports standard x86, 1 x VGA, 4 x USB, 6 Gigabit LAN ports, 2 RS/232/422/485 3-in-1 serial ports, and 10 RS-485 (RS-422 by CV) ports. The DA-681A has a mini PCIe slot for mSATA and comes with Linux preinstalled; Windows 7 Embedded is also supported by a CTOS (Configuration To Order Service) process.
Another plus is that the serial ports come with 2 kV digital galvanic isolation protection to guarantee communication reliability in harsh industrial environments. In addition, the state-of-the-art IEC 61850-3, IEEE 1613, and IEC 60255 compliance all-in-one design provide rich interfaces, especially well-suited for power substation automation applications.
Smart Recovery Function
The DA-681A's Smart Recovery function minimizes downtime by making it easy to recover from operating system crashes. Engineers who are experts in a particular vertical market may not have enough computer domain knowledge to know how to fix operating system problems. Moxa Smart Recovery™ is an automated BIOS-level recovery system tool that allows engineers to automatically trigger OS recovery to minimize downtime.
Proactive Monitoring Function
Moxa Proactive Monitoring is a small, resource-friendly, easy-to-use utility that allows users to track the number of system parameters. Users can view the current parameter values for these key parts by simply clicking on the icons corresponding to the parameters in the user interface. User-defined key part indicators (KPIs) are used to monitor the computer’s key parts. Visible and/or audio alerts are triggered automatically via relay and SNMP traps when these KPIs exceed their preset threshold values, making it extremely convenient for operators to avoid system downtime by setting up predictive maintenance tasks well in advance.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA DA-681A-I-DPP-LX Rackmount Industrial Computer online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
End of Life Product - Replacement Available
Please note that the DA-681A Series has been phased out and replaced by the MOXA DA-681C Series.
MOXA DA-681A-I-DPP-LX CERTIFICATIONS
