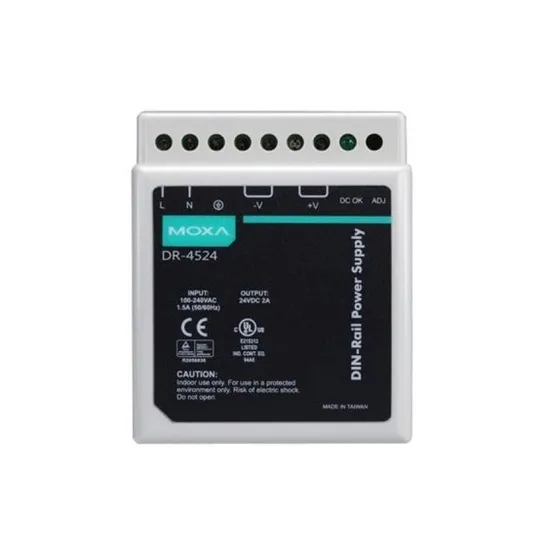

MOXA DR-4524 DIN-Rail Power Supply

Tags: Accessories , Power Accessories , DIN-Rail Power Supplies , Industrial Accessories , Power Supplies , MOXA DR Power Supply Series

Model: DR-4524

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA DR-4524 FEATURES

85 to 264 VAC, 120 to 370 VDC input power range
24 VDC (48 W) output power range
DIN-rail mounting
-10 to 50°C operating temperature range

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA DR-4524 INTRODUCTION

The DR Power Supply Series provides a reliable 24/48 VDC power source for industrial control systems. The Series has rugged, compact enclosures, and can operate reliably in temperatures between -10 and 60°C. The DR Power Supply Series has passed a 100% full load burn-in test and is UL/CUL listed, TÜV/CB certified, and CE marked.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA DR-4524 DIN-Rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

End of Life Product - Replacement Available

Please note that the DR Power Supply Series has been phased out, and replaced by the MOXA HDR Series and MOXA NDR Series.

MOXA DR-4524 CERTIFICATIONS

Power Supply : Power Requirements
Input	Voltage: 85 to 264 VAC (47 to 63 Hz), 120 to 370 VDC; Typical Current: 0.75 A @ 230 VAC, 1.5 A @ 115 VAC; Inrush Current (cold start): 56 A @ 230 VAC, 28 A @ 115 VAC
Operating Voltage	-
Output	Wattage: 48 W; Voltage: 24 VDC; Current Rating: 0 to 2 A
Over-voltage Protection	27.6-32.4 V (Shut down operating voltage, repower on to recover)
Overload Protection	105-150% (Constant current limiting, recovers automatically after fault condition is removed)
Reverse Polarity Protection	-
Power Supply : Physical Characteristics
Dimensions	78 x 67 x 93 mm (3.07 x 2.64 x 3.66 in)
Housing	-
Weight	400 g
Ambient Relative Humidity	20 to 90% (non-condensing)
Operating Temperature	-10 to 50°C (14 to 122°F)
Storage Temperature	-
Installation	DIN-rail mounting
Standards and Certifications	EMC: EN 50082-2, EN 55022 Class B, EN 61000-3-2 Class A, ENV 50204; Safety: EN 60950-1
MTBF	-
Power Supply : Supported Series
Supported Series	-
