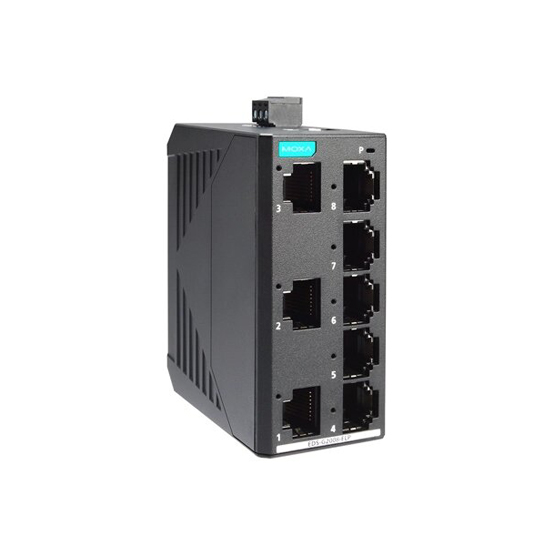

MOXA EDS-G2008-ELP Unmanaged Ethernet Switch

Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

Introduction

The EDS-G2008-ELP Series of industrial Ethernet switches has eight Gigabit Ethernet ports and plastic housing, ideal for applications requiring simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-G2008-ELP Series also allows users to enable or disable the Quality of Service (QoS) function and broadcast storm protection (BSP) with DIP switches on the outer panel.

The EDS-G2008-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-G2008-ELP Series has passed a 100% burn-in test to ensure it will function reliably after deployment. The EDS-G2008-ELP Series has a standard operating temperature range of -10 to 60°C.



Certifications




Features

      • 8 x 10/100/1000Mbps T(x) ports
      • DIN-rail
      • Plastic body
      • -10 to 60°C operating temperature
      switch and hub : Interface
      Number of ports 8 Ports
      10/100Mb RJ45 (Megabit) Ports No
      10/100/1000Mb RJ45 (Gigabit) Ports Yes: 8 Ports
      100Mb Fiber optic multi mode (Megabit) Ports No
      100Mb Fiber optic single mode (Megabit) Ports No
      1000Mb SFP Fiber optic (Gigabit) Ports No
      10/100Mb (Megabit) POE Ports No
      100Mb SFP Fiber optic (Megabit) Ports No
      10/100/1000Mb (Gigabit) POE Ports No
      M12 port No
      Serial port No
      USB No
      switch and hub : Features and capabilities
      Backup No
      switch and hub : LED Indicators
      LED Per Port Yes
      switch and hub : Power Requirements
      Maximum power consumption -
      Power Consumption (Output Adapter) 9.6 to 60 VDC
      Power Input Plugin ( Redundant ) No
      switch and hub : General
      Fan / Fanless Fanless
      MTBF 3,404,784 hrs
      switch and hub : Switch specifications
      Most forwarding speed -
      Network working layers Layer 1
      Switch type Unmanaged
      Port Aggregation -
      switch and hub : Physical Characteristics
      Housing Plastic
      Installation DIN-rail mounting, Wall mounting (with optional kit)
      Operation Humidity 5 to 95% (non-condensing)
      Standards and Certifications Safety: UL 61010-2-201, EN 62368-1 (LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR, 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 1 kV Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-32
      switch and hub : Standards and protocols
      Protocols and work standards IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X), IEEE 802.1p for Class of Service, IEEE 802.3x for flow control
      Protocols and management standards No
      switch and hub : Package Checklist
      Hardware installation guide Yes
      Power adapter No
      Power cable No
