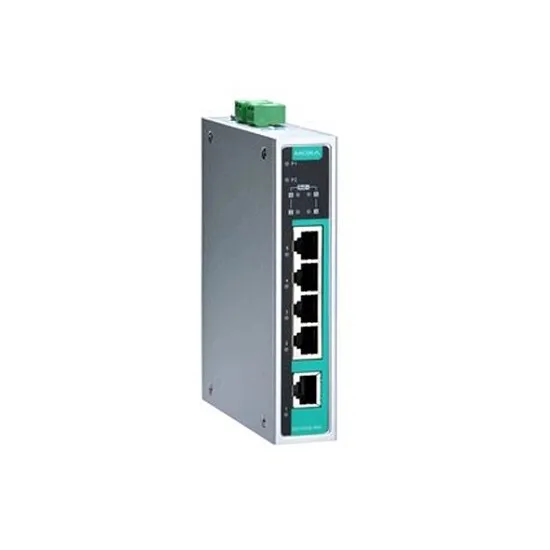

MOXA EDS-G205A-4PoE-T Unmanaged Ethernet Switch

MOXA EDS-G205A-4PoE-T Unmanaged Ethernet Switch
  • Model: EDS-G205A-4PoE-T
$0.00
Ex Tax: $0.00

MOXA EDS-G205A-4PoE-T FEATURES

  • 4 x 1000Mbps PoE ports and 1 x 1000Mb SFP port
  • Din-rail
  • Metal body
  • -40 to 75°C operating temperature
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA EDS-G205A-4PoE-T INTRODUCTION

The EDS-G205A-4PoE switches are smart, 5-port, unmanaged full Gigabit Ethernet switches that support Power-over-Ethernet on ports 2 to 5. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-G205A-4PoE switches enable centralization of the power supply, providing up to 36 watts of power per port and reducing the effort needed for installing power. The switches can be used to power IEEE 802.3af/at standard devices (power devices), eliminating the need for additional wiring, and they support IEEE 802.3/802.3u/802.3x with 10/100/1000M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical high-bandwidth solution for your industrial Ethernet network.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA EDS-G205A-4PoE-T Unmanaged Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

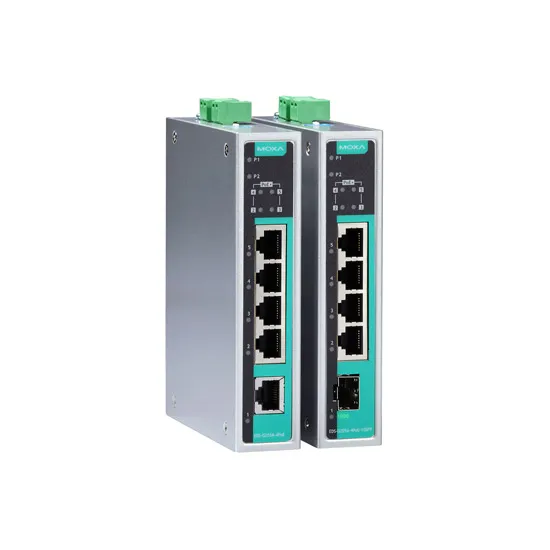

You can also find the EDS-G205A-4PoE-1GSFP, EDS-G205A-4PoE-1GSFP-T, and EDS-G205A-4PoE models in the MOXA EDS-G205A Series.


MOXA EDS-G205A-4PoE-T CERTIFICATIONS



switch and hub : Interface
Number of ports 5 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 1 Port
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
100Mb SFP Fiber optic (Megabit) Ports No
10/100/1000Mb (Gigabit) POE Ports Yes : 4 Ports
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
Power Yes
switch and hub : Power Requirements
Maximum power consumption 30W (in PoE mode)
Power Consumption (Output Adapter) 24V DC, 7.5A
Power Input Plugin ( Redundant ) Yes
switch and hub : General
Fan / Fanless No
MTBF -
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 1
Switch type Unmanaged
Port Aggregation -
switch and hub : Physical Characteristics
Dimensions 29x135x105mm
Housing Metal
Installation Din-rail
Operating Temperature -40 to 75 ° C
Operation Humidity 5% to %95 RH non-condensing
Standards and Certifications FCC, UL 508, EN 50121-4, IP30
Storage Temperature -40 to 85 ° C
Weight 0.3Kg
switch and hub : Standards and protocols
Protocols and work standards IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT, IEEE 802.3z for 1000BaseX, IEEE 802.3x for Flow Control
Protocols and management standards No
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
