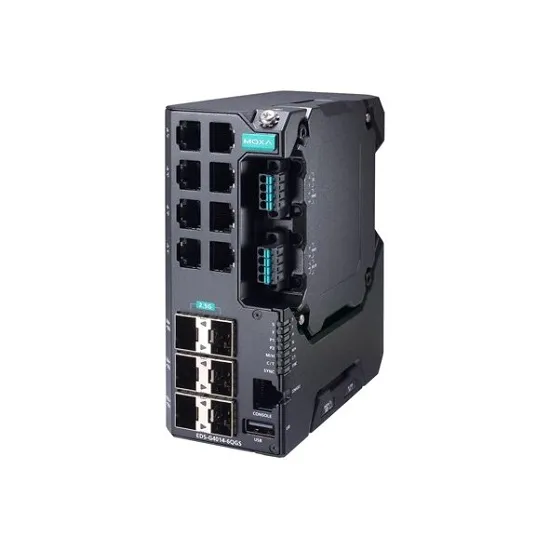

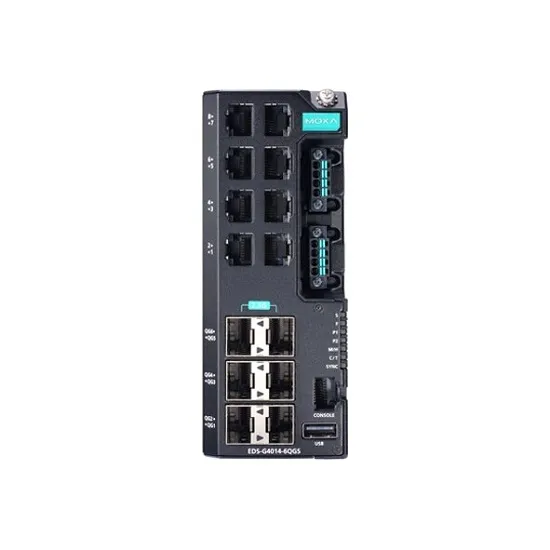

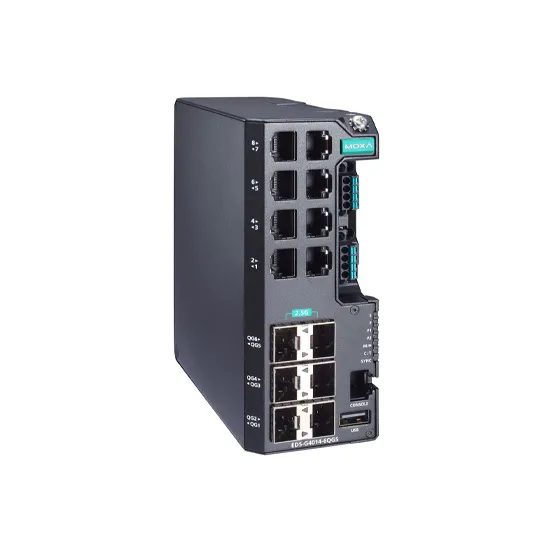

MOXA EDS-G4014-6QGS-LV Managed Ethernet Switch
- Model: EDS-G4014-6QGS-LV
MOXA EDS-G4014-6QGS-LV INTRODUCTION
The EDS-G4014 Series is equipped with eight Gigabit Ethernet ports and six 2.5 Gbps fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission speed increases bandwidth for higher performance and can transfer large amounts of triple-play services across a network quickly.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-G4014 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.
The EDS-G4014 Series complies with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA EDS-G4014-6QGS-LV Managed Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the EDS-G4014-6QGS-HV-T, EDS-G4014-6QGS-HV, and EDS-G4014-6QGS-LV-T models in the MOXA EDS-G4014 Series.
MOXA EDS-G4014-6QGS-LV CERTIFICATIONS
switch and hub : Interface | |
Number of ports | 14 Ports |
10/100Mb RJ45 (Megabit) Ports | No |
10/100/1000Mb RJ45 (Gigabit) Ports | Yes : 8 Ports |
100Mb Fiber optic multi mode (Megabit) Ports | No |
100Mb Fiber optic single mode (Megabit) Ports | No |
1000Mb SFP Fiber optic (Gigabit) Ports | No |
10/100Mb (Megabit) POE Ports | No |
100Mb SFP Fiber optic (Megabit) Ports | No |
10/100/1000Mb (Gigabit) POE Ports | No |
Other ports | Yes : 4 x 100/1000/2500 SFP Ports, 2 x 1000/2500 SFP Ports |
switch and hub : Features and capabilities | |
Backup | - |
switch and hub : LED Indicators | |
LED Per Port | Yes |
switch and hub : Power Requirements | |
Maximum power consumption | 14.91 W |
Power Consumption (Output Adapter) | - |
Power Input Plugin ( Redundant ) | Yes : 12/24/48 VDC |
switch and hub : General | |
Fan / Fanless | Fanless |
MTBF | 994,797 hours |
switch and hub : Switch specifications | |
Most forwarding speed | - |
Network working layers | Layer 2 |
Switch type | Managed |
Port Aggregation | - |
switch and hub : Physical Characteristics | |
Housing | Metal |
Installation | DIN-rail mounting, Wall mounting (with optional kit) |
Operating Temperature | -10 to 60°C (14 to 140°F) |
Operation Humidity | 5% to %95 non-condensing |
Standards and Certifications | Industrial Cybersecurity : IEC 62443-4-1, IEC 62443-4-2; UL 61010-2-201, EN 62368-1 (LVD); EN 55022/24, EN 61000-6-2/-6-4; CISPR 32, FCC Part 15B Class A; IEC 61000-4-2 ESD: Contact: 8 kV Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Vibration, Shock, Freefall, Railway, Traffic Control |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
switch and hub : Standards and protocols | |
Protocols and work standards | GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier, STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, Broadcast storm protection, Rate Limit, Trust access control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and Password Policy, SNTP, NTP Server/Client, NTP Authentication, IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog |
Protocols and management standards | IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB |
switch and hub : Package Checklist | |
Hardware installation guide | Yes |
Power adapter | No |
Power cable | No |
