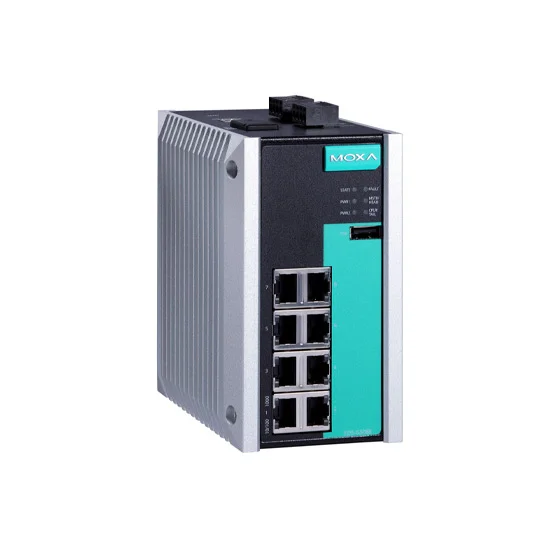

MOXA EDS-G508E-T Managed Ethernet Switch
MOXA EDS-G508E-T Managed Ethernet Switch
- Model: EDS-G508E-T
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
MOXA EDS-G508E-T INTRODUCTION
The EDS-G508E switches are equipped with 8 Gigabit Ethernet ports, making them ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly. Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the reliability of your system and improve the availability of your network backbone. The EDS-G508E Series is designed especially for demanding communication applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA EDS-G508E-T Managed Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the EDS-G508E model in the MOXA EDS-G508E Series.
MOXA EDS-G508E-T CERTIFICATIONS
switch and hub : Interface | |
Number of ports | 8 Ports |
10/100Mb RJ45 (Megabit) Ports | No |
10/100/1000Mb RJ45 (Gigabit) Ports | Yes : 8 Ports |
100Mb Fiber optic multi mode (Megabit) Ports | No |
100Mb Fiber optic single mode (Megabit) Ports | No |
1000Mb SFP Fiber optic (Gigabit) Ports | No |
10/100Mb (Megabit) POE Ports | No |
100Mb SFP Fiber optic (Megabit) Ports | No |
10/100/1000Mb (Gigabit) POE Ports | No |
switch and hub : Features and capabilities | |
Backup | Turbo Ring, Turbo Chain, Automatic Backup Configurator (ABC-02), STP/RSTP, MSTP |
switch and hub : LED Indicators | |
LED Per Port | Yes |
Power | Yes |
switch and hub : Power Requirements | |
Maximum power consumption | - |
Power Consumption (Output Adapter) | 24V DC, 0.33A |
Power Input Plugin ( Redundant ) | Yes |
switch and hub : General | |
Fan / Fanless | No |
MTBF | 814,608 hrs |
switch and hub : Switch specifications | |
Most forwarding speed | - |
Network working layers | Layer 2 |
Switch type | Managed |
Port Aggregation | - |
switch and hub : Physical Characteristics | |
Dimensions | 79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in) |
Housing | Metal |
Installation | DIN-rail mounting, Wall mounting (with optional kit) |
Operating Temperature | -40 to 75°C (-40 to 167°F) |
Operation Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | FCC, UL 508, UL/cUL Class 1 Div.2, ATEX Zone 2, NEMA TS2, EN 50121-4, IEEE 1613, IP30 |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Weight | 1440 g (3.18 lb) |
switch and hub : Standards and protocols | |
Protocols and work standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseX, IEEE 802.3x for Flow Control, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1w for Rapid STP, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1p for Class of Service, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP |
Protocols and management standards | IGMPv1/v2/v3, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, EtherNet/IP, PROFINET, Modbus/TCP, SNMP Inform, LLDP, IEEE 1588 PTPv2, IPv6, NTP Server/Client |
switch and hub : Package Checklist | |
Hardware installation guide | Yes |
Power adapter | No |
Power cable | No |
