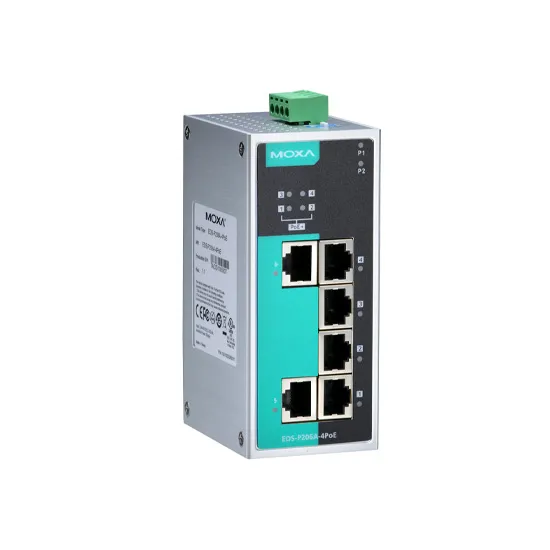

MOXA EDS-P206A-4PoE Unmanaged Ethernet Switch

MOXA EDS-P206A-4PoE Unmanaged Ethernet Switch
  • Model: EDS-P206A-4PoE
$0.00
Ex Tax: $0.00

MOXA EDS-P206A-4PoE FEATURES

  • 4 x 100Mbps PoE ports
  • 2 x 100Mbps ports
  • DIN-rail
  • Metal body
  • -10 to 60°C operating temperature


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA EDS-P206A-4PoE INTRODUCTION

The EDS-P206A-4PoE switches are smart, 6-port, unmanaged Ethernet switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switches enable centralization of the power supply and provide up to 30 watts of power per port. The switches can be used to power IEEE 802.3af/at-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA EDS-P206A-4PoE Unmanaged Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the EDS-P206A-4PoE-M-SC, EDS-P206A-4PoE-M-SC-T, and EDS-P206A-4PoE-M-ST models in the MOXA EDS-P206A Series.


MOXA EDS-P206A-4PoE CERTIFICATIONS



switch and hub : Interface
Number of ports 6 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 2 Ports
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports Yes : 4 Ports
100Mb SFP Fiber optic (Megabit) Ports No
10/100/1000Mb (Gigabit) POE Ports No
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
Power Yes
switch and hub : Power Requirements
Maximum power consumption 30W (in PoE mode)
Power Consumption (Output Adapter) 48V DC, 7.5A
Power Input Plugin ( Redundant ) Yes
switch and hub : General
Fan / Fanless No
MTBF 1,398,743 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 1
Switch type UnManaged
Port Aggregation -
switch and hub : Physical Characteristics
Dimensions 50.3 x 114 x 70 mm (1.98 x 4.53 x 2.76 in)
Housing Metal
Installation Din-rail Wall mounting (with optional kit)
Operating Temperature -10 to 60°C (14 to 140°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications FCC, UL 508, IP30
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 375 g (0.83 lb)
switch and hub : Standards and protocols
Protocols and work standards IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for Flow Control
Protocols and management standards No
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
