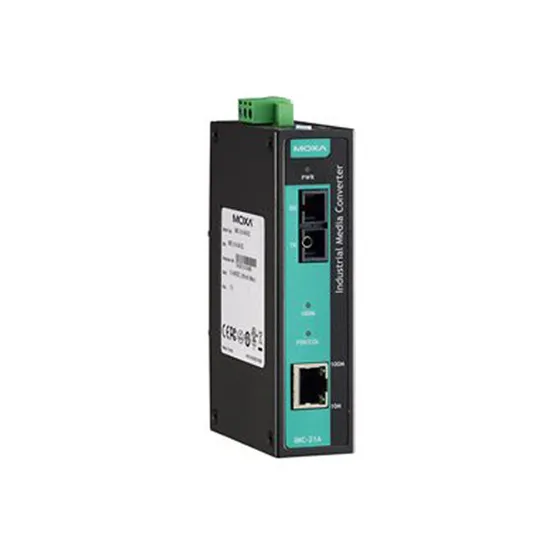

MOXA IMC-21A-M-SC Ethernet to Fiber Converter
MOXA IMC-21A-M-SC Ethernet to Fiber Converter
- Model: IMC-21A-M-SC
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
The IMC-21A industrial media converters are entry-level 10/100BaseT(X)-to-100BaseFX media converters designed to provide reliable and stable operation in harsh industrial environments. The converters can operate reliably in temperatures ranging from -40 to 75°C. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The IMC-21A converters are easy to mount on a DIN rail or in distribution boxes.
Certifications
Features
- 1 x 10/100Mbps T(x) port and 1 x 100Mbps F(x) multi-mode port with SC connector
- 12 to 48 VDC input power
- Metal body
- -10 to 60°C operating temperature
eth to fiber : Interface | |
10/100Mb RJ45 (Megabit) Ports | Yes : 1 Port |
10/100/1000Mb RJ45 (Gigabit) Ports | No |
100Mb Fiber optic multi mode (Megabit) Ports | Yes : 1 SC Port |
100Mb Fiber optic single mode (Megabit) Ports | No |
1000Mb Fiber optic single mode (Gigabit) Ports | No |
1000Mb SFP Fiber optic (Gigabit) Ports | No |
M12 port | No |
Alert Output | No |
eth to fiber : Standards and protocols | |
Protocols and work standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
eth to fiber : General | |
Maximum cable length for data transfer | 5Km with multi mode fiber optic cable |
MTBF | 353,000 hour |
eth to fiber : Power Requirements | |
Power consumed | 12V DC to 48V DC, 0.25A |
Type of power input | Terminal input |
POE Support | No |
Protection against reverse voltage | Yes |
Protection against overflow | Yes |
eth to fiber : LED Indicators | |
LNK/ACT | No |
Power | Yes |
eth to fiber : Buttons | |
DIP Switch | TP port’s 10/100M, Half/Full modes, Force/Auto modes; fiber port’s Half/Full modes, Link Fault Pass-Through (LFP) |
eth to fiber : Physical Characteristics | |
Standards and Certifications | IP30 protection, Safety: UL 60950-1, EMC: EN 55022/24, EMI: CISPR 22, FCC Part 15B Class A, EN 61000-4-2 (ESD): Contact: 6 kV; Air: 8 kV, EN 61000-4-3 (RS): 80 MHz to 1 GHz: 1 V/m, EN 61000-4-4 (EFT): Power: 1 kV; Signal: 1 kV, EN 61000-4-5 (Surge): Power: 1 kV; Signal: 1 kV, EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m, EN 61000-4-8 (PFMF), EN 61000-4-11, RoHS, CRoHS, WEEE, Shock: IEC 60068-2-27, Freefall: IEC 60068-2-32, Vibration: IEC 60068-2-6 |
Housing | Metal |
Dimensions | 30x125x79mm |
Weight | 0.17Kg |
Operating Temperature | -10 to 60 ° C |
Storage Temperature | -40 to 75 ° C |
Operation Humidity | 5% to %95 non-condensing |
Installation | Din-rail |
