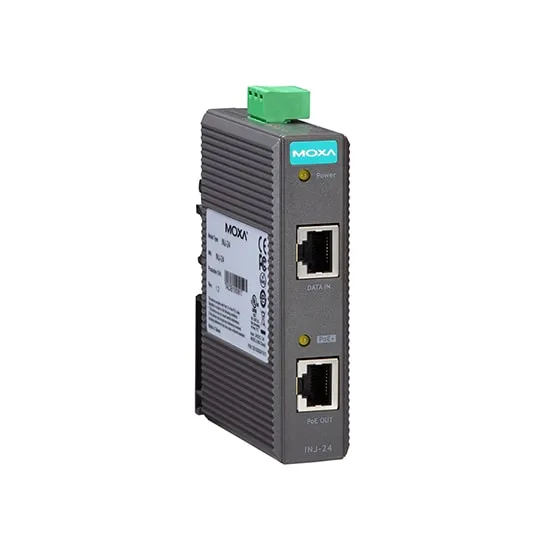

MOXA INJ-24-T PoE+ Injector

MOXA INJ-24-T PoE+ Injector
  • Model: INJ-24-T
$0.00
Ex Tax: $0.00

MOXA INJ-24-T FEATURES

  • 1 x 10/100/1000BaseT(X), RJ45 connector
  • 1 x  PoE Port (10/100/1000BaseT(X), RJ45 connector)
  • IEEE 802.3af/at compliant
  • Plastic Body
  • 24 to 48 VDC input power
  • DIN-rail mounting
  • -40 to 75°C operating temperature


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA INJ-24 INTRODUCTION

The INJ-24 is a Gigabit IEEE 802.3at PoE+ injector that combines power and data and delivers them to a powered device over one Ethernet cable. Designed for use with power-hungry devices, the INJ-24 injector provides a PoE of up to 30 watts. The -40 to 75°C (-40 to 167°F) operating temperature capability makes the INJ-24 ideally suited to operating in harsh industrial environments.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA INJ-24-T PoE+ Injector online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the INJ-24 models in the MOXA INJ-24 Series.

MOXA INJ-24-T CERTIFICATIONS



PoE Adapter : Interface
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Yes: 1 Input Port
Input PoE Port No
Output PoE Port Yes: 1 Port
PoE Pinout V+, V+, V-, V-, for pins 4, 5, 7, 8 (Midspan, MDI, Mode B)
PoE Adapter : Standards and protocols
Protocols and work standards IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X)
PoE Adapter : Power Requirements
Input Voltage 24 to 48 VDC
Power Consumption (Output Adapter) Max. 4.08 W full loading without PDs’ consumption
Input Current 1.42 A @ 24 VDC
Operating Voltage 22 to 57 VDC
Power Budget Max. 30 W for total PD consumption, Max. 30 W for each PoE port
Connector 1 removable 3-contact terminal block(s)
PoE Adapter : Buttons
DIP Switch No
PoE Adapter : LED Indicators
PoE Yes
Power Yes
PoE Adapter : Physical Characteristics
Installation DIN-rail mounting
Standards and Certifications Safety: UL 508, EN 62368-1; EMC: EN 55032/24; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6
Dimensions 24.9 x 100 x 86.2 mm (0.98 x 3.93 x 3.39 in)
Housing Plastic
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 75°C (-40 to 167°F)
Weight 115 g (0.26 lb)
Ambient Relative Humidity 5 to 95% (non-condensing)
MTBF 2,525,278 hour
