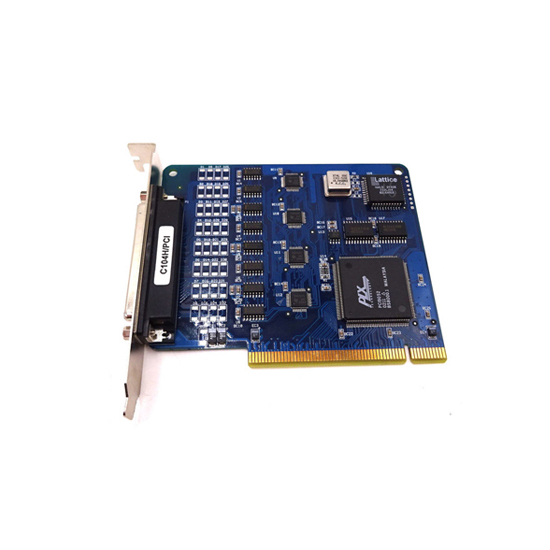

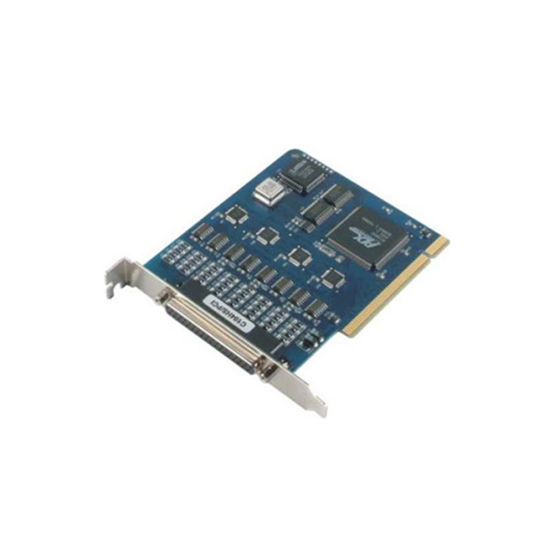

MOXA C104H/PCI Serial Board






MOXA C104H/PCI Serial Board
- Model: C104H/PCI
$0.00
Ex Tax: $0.00
MOXA C104H/PCI FEATURES
- 4 x RS-232 Serial Ports (DB37 female connector)
- Data transmission speed up to 921.6 Kbps
- Supports maximum 921.6 kbps baud rate
- Compatible Drivers with Windows, Linux, and UNIX
- 0 to 55°C operating temperature range

Over 40 Years in Business
Successful track record across Canada

Full Engineering Services
A powerhouse to provide consultation, training, and support

Strong Brand Portfolio
Top-notch products from superb global and local suppliers

Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
MOXA C104H/PCI INTRODUCTION
The C104H Series allows you to install additional RS-232 serial
communication ports on your PC by providing 4 serial ports
per board for connecting all types of serial devices, including
terminals, modems, printers, data acquisition equipment, and
more. And C104H’s versatile OS driver support truly fulfills
the needs of our customers’ varied applications. This product
is available for use on either a PCI or ISA bus, with both types
offering a reliable and high-performance solution for serial
multiport communications.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA C104H/PCI Serial Board online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
End of Life Product - Replacement Available
Please note that the C104H/PCI Series has been phased out and replaced by the MOXA CP-104UL/104JU Series.
MOXA C104H/PCI CERTIFICATIONS
Multiport Serial Boards : Serial Interface | |
Comm. Controller | 16C550C or compatible x 4 |
Number of Ports | 4 Port |
Bus interface | PCI |
Serial Standards | RS-232 |
Connector | DB37 female |
Baudrate | Up to 921.6 Kbps |
Stop Bits | - |
Parity | None, even, odd, space, mark |
Flow Control | - |
Max. No. of Boards per PC | - |
Data Bits | 5, 6, 7, 8 |
FIFO | - |
Isolation | No |
Multiport Serial Boards : Serial Signals | |
RS-232 | - |
RS-422 | - |
RS-485-4w | - |
RS-485-2w | - |
Multiport Serial Boards : Serial Software Features | |
Windows Drivers | Windows 95/98/ME/NT/2000/XP/2003 |
Linux Drivers | - |
UNIX Drivers | UnixWare SVR4.2 |
Multiport Serial Boards : Power Requirements | |
Input Current | 110 mA max. (+5V), 44.8 mA max. (+12V), 16.2 mA max. (-12V) |
Input Voltage | - |
Multiport Serial Boards : General | |
MTBF | - |
LED Indicators | - |
Multiport Serial Boards : Physical Characteristics | |
Dimensions | 120 x 100 mm (W x D) |
Standards and Certifications | Regulatory Approvals: FCC, CE |
Operating Temperature | 0 to 55°C |
Storage Temperature | -20 to 85°C |
Operation Humidity | 5 to 95% RH |
