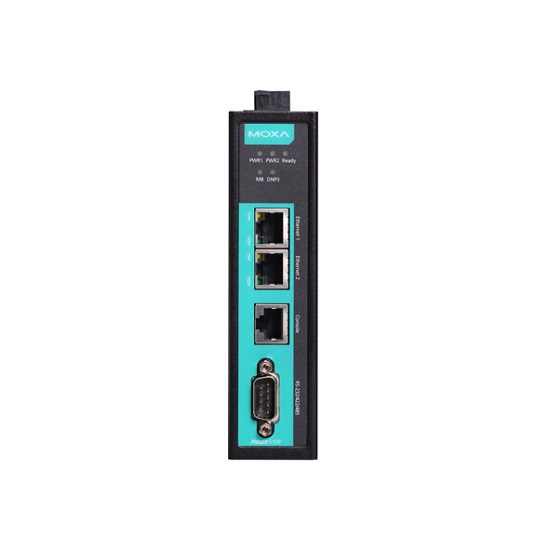

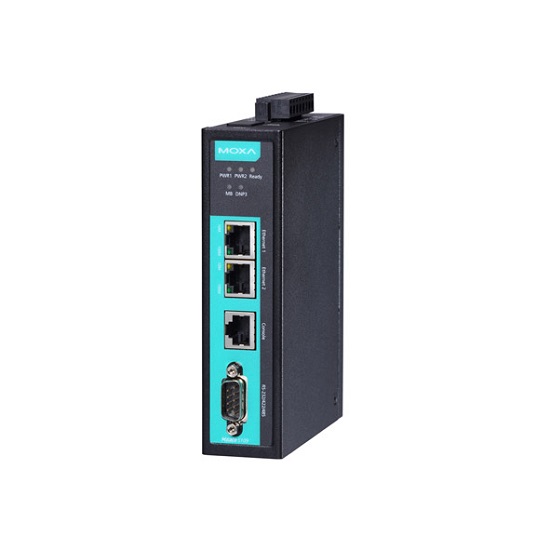

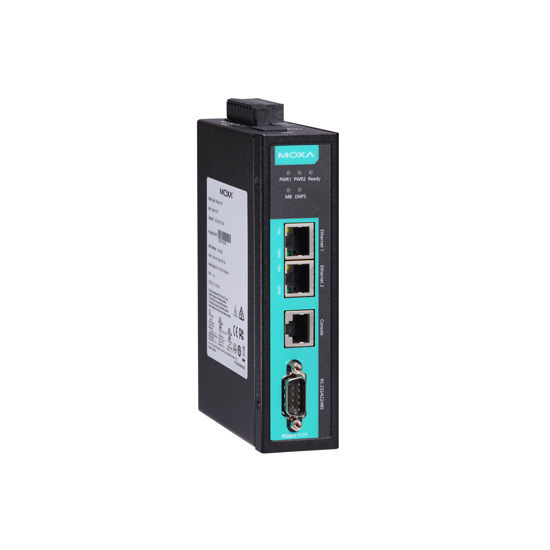

MOXA MGate 5109 Industrial Ethernet Gateway








MOXA MGate 5109 Industrial Ethernet Gateway
- Model: MGate 5109
$0.00
Ex Tax: $0.00

Over 40 Years in Business
Successful track record across Canada

Full Engineering Services
A powerhouse to provide consultation, training, and support

Strong Brand Portfolio
Top-notch products from superb global and local suppliers

Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
MOXA MGate 5109 INTRODUCTION
The MGate 5109 is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and DNP3 serial/TCP/UDP protocol conversion. All models are protected with a rugged metallic casing, are DIN-rail mountable, and offer built-in serial isolation. The MGate 5109 supports a transparent mode to easily integrate Modbus TCP to Modbus RTU/ASCII networks or DNP3 TCP/UDP to DNP3 serial networks. The MGate 5109 also supports agent mode to exchange data between Modbus and DNP3 networks or to act as a data concentrator for multiple Modbus slaves or multiple DNP3 outstations. The rugged design is suitable for industrial applications such as power, oil and gas, and water and wastewater.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA MGate 5109 Industrial Ethernet Gateway online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the MGate 5109-T model in the MOXA MGate 5109 Series.
MOXA MGate 5109 CERTIFICATIONS
Industrial Gateway : Interface | |
10/100Mb RJ45 (Megabit) Ports | Yes: 2 Ports |
RS-232 Ports | No |
RS-422/485 Ports | No |
RS-232/422/485 Ports | Yes: 1 x DB9-M Port |
Other ports | Yes : 1 console port |
Industrial Gateway : Serial port specifications | |
Serial Communication Parameters | Data Bits: 7, 8; Stop Bits: 1, 2; Parity: None, Even, Odd, Space, Mark |
Flow Control | RTS Toggle, RTS / CTS only in RS-232 standard |
Data transfer speed ( Baudrate ) | 0.05Kbps to 921.6Kbps |
RS-485 Flow Control | ADDC |
Protection against electrostatic discharge | ESD: Contact: 8 kV; Air: 15 kV |
Electrical isolation | Yes: 2KV |
Industrial Gateway : Standards and protocols | |
Ethernet Protocol | Modbus TCP client/server, DNP 3.0 TCP/UDP master/outstation |
Serial Protocol | Modbus RTU/ASCII client/server, DNP 3.0 TCP/UDP master/outstation |
Industrial Gateway : General | |
Management | ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client |
Supported software | MXconfig, MXview, SNMP (v1, v2c, v3), Private MIB |
Compatible operating systems | Device Search Utility (DSU) for Windows 95, 98, ME, NT, 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1/10 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2 |
Industrial Gateway : Power Requirements | |
Power Consumption (Output Adapter) | 12V DC to 48V DC |
Type of power input | Screw-fastened Euroblock terminal |
Industrial Gateway : Physical Characteristics | |
Dimensions | 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in) |
Standards and Certifications | IP30, Safety: UL 508, EN 60950-1; Hazardous Location: Class 1 Division 2, ATEX, IECEx EMC: EN 55022/24; EMI: CISPR 22, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m, IEC 61000-4-8 PFMF, Vibration, Shock, Freefall |
Housing | Metal |
Operating Temperature | 0 to 60°C (32 to 140°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Operation Humidity | 5 to 95% (non-condensing) |
Altitude | - |
