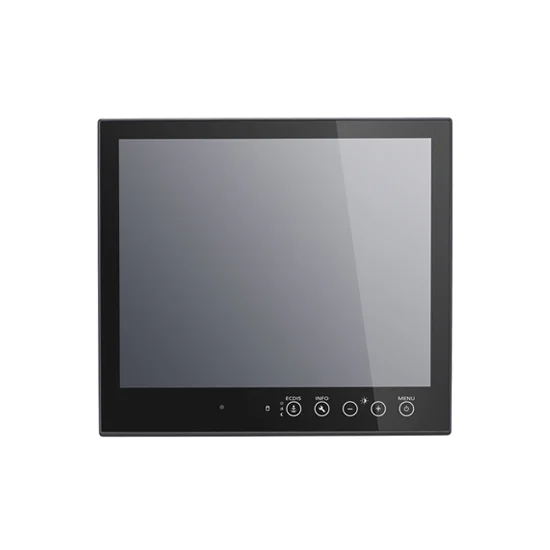

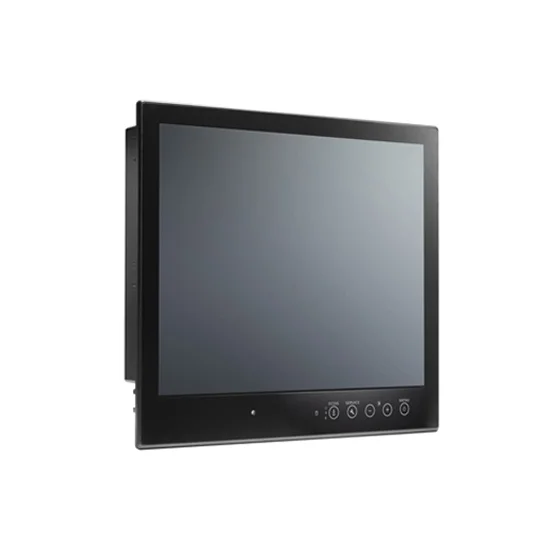

MOXA MD-219Z Industrial Monitor
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
The MD-219 Series of marine displays come with full range dimming, wide viewing angles, and optional optical bonding. These displays are built with a small-profile modular design that allows easier integration into industrial marine systems, reducing deployment costs and overall time-to-market.
The innovative and user-friendly SavvyTouch display controls offer several unique features not found on any other marine display console: a proximity sensor for convenient adjustments in dark conditions, an info button for immediate updates on power status, and a quick-switch to adjust between day, dusk, and night-time ECDIS modes (for color-calibrated ECDIS models only).
The MD-219 Series displays are compliant with IEC 60945, DNV, ABS, and IACS E10, making them suitable for maritime applications. Their IP54rated (IP66-rated model available by request) enclosure provides additional protection against dust and moisture above and beyond the limits established by these international standards bodies. ECDIS-approved models are also available, offering an excellent HMI solution for ECDIS charting and navigation stations.
Certifications
Features
- 19-inch display
- 300-nit sunlight-readable 1000-nit LED backlight
- ECDIS color calibration (by request)
- MVA panel type
- 16.7M (8-bit/color) maximum number of colors
- 1280x1024 pixels
- 1 x RS-232 (DB9 male) and 1 x RS-232/422/485 (terminal block) Serial ports
- 1 x DVI-D, 1 x VGA
- -15 to 55°C operating temperature
- Projected capacitive multi-touch
