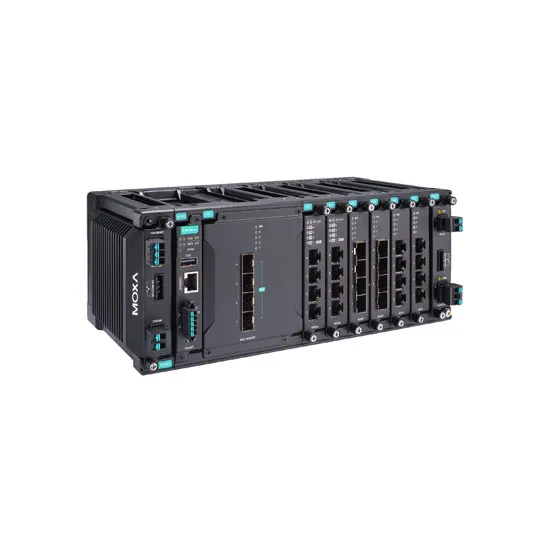

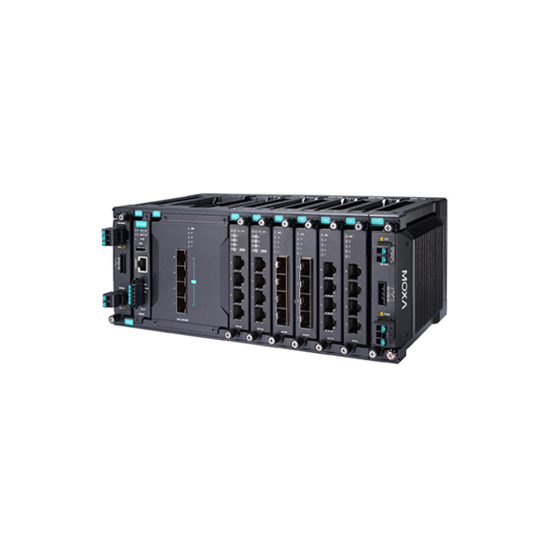

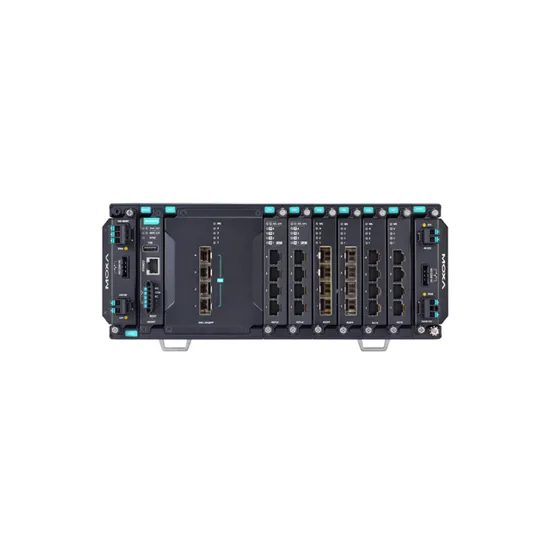

MOXA MDS-G4028-L3-4XGS-T Rackmount Ethernet Switch






- Model: MDS-G4028-L3-4XGS-T
MOXA MDS-G4028-L3-4XGS-T FEATURES
- Pre-installed Modules: 4 embedded 10Gigabit ports
- Module: 6 slots for optional 4-port FE/GE modules
- Rackmount
- Layer 3 routing interconnects multiple LAN segments
- Multiple interface type 4-port modules for greater versatility
- Tool-free design for effortlessly adding or replacing modules without shutting down the switch
- Ultra-compact size and numerous mounting options for flexible installation
- Intuitive, HTML5-based web interface for a seamless experience across different platforms




MOXA MDS-G4028-L3-4XGS-T INTRODUCTION
The MDS-G4028-L3-4XGS Series modular switches support 4 10GbE + 24 Gigabit ports, including 4 embedded ports, 6 interface module expansion slots, and 2 power module slots to ensure sufficient flexibility for a variety of applications. The highly compact MDS-G4028-L3-4XGS Series is designed to meet evolving network requirements, ensuring effortless installation and maintenance, and features a hot-swappable module design that enables you to easily change or add modules without shutting down the switch or interrupting network operations.
The multiple Ethernet modules (RJ45 and SFP) and power units (24/48 VDC and 110/220 VAC/VDC) provide even greater flexibility as well as suitability for different operating conditions, delivering an adaptive full Gigabit platform that offers the versatility and bandwidth necessary to serve as an Ethernet aggregation/edge switch. Featuring a compact design that fits in confined spaces, multiple mounting methods, and convenient tool-free module installation, the MDS-G4028-L3-4XGS Series switches enable versatile and effortless deployment without the need for highly skilled engineers. With numerous industry certifications and highly durable housing, the MDS-G4028-L3-4XGS Series can reliably operate in tough and hazardous environments such as power substations, mining sites, ITS, and oil and gas applications. Support for dual LV or HV power modules provides redundancy for high reliability and availability and also offers flexibility to accommodate the power requirements of different applications.
Support for Layer 3 routing functionality enables these switches to facilitate the deployment of applications across different networks, making them ideal for large-scale industrial networks. In addition, the MDS-G4028-L3-4XGS Series features an HTML5–based, user-friendly web interface providing a responsive, smooth user experience across different platforms and browsers.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA MDS-G4028-L3-4XGS-T Rackmount Ethernet Switch online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the MDS-G4020-L3-4XGS-T model in the MOXA MDS-G4020-L3-4XGS Series.
MOXA MDS-G4028-L3-4XGS-T CERTIFICATIONS
Switch and Hub : Interface | |
Number of ports | 28 Ports |
10/100Mb RJ45 (Megabit) Ports | Up to 24 Ports |
10/100/1000Mb RJ45 (Gigabit) Ports | Up to 24 Ports |
100Mb Fiber optic multi mode (Megabit) Ports | No |
100Mb Fiber optic single mode (Megabit) Ports | No |
1000Mb SFP Fiber optic (Gigabit) Ports | Up to 24 Ports |
10/100Mb (Megabit) POE Ports | No |
100Mb SFP Fiber optic (Megabit) Ports | - |
10/100/1000Mb (Gigabit) POE Ports | No |
Other ports | Yes : 4 x 10G SFP+ Slots |
Switch and Hub : Features and Capabilities | |
Backup | No |
Switch and Hub : LED Indicators | |
LED Per Port | Yes |
Switch and Hub : Power Requirements | |
Input Voltage | With PWR-HV-P48-A/PWR-HV-NP: Max. 41.8 W @ 110 VDC; Max. 37.4 W @ 220 VDC; Max. 44.15 W @ 110 VAC; Max. 39.63 W @ 220 VAC, With PWR-LV-P48 A/PWR-LV-NP: Max. 79.2 W @ 24 VDC; Max. 35.0 W @ 48 VDC |
Operating Voltage | Max. PoE Power Output per Port: 36 W |
Power Input Plugin ( Redundant ) | No |
Switch and Hub : General | |
Fan / Fanless | Fanless |
MTBF | 794,073 hrs |
Switch and Hub : Switch Specifications | |
Most forwarding speed | - |
Network working layers | Layer 2 |
Switch type | Managed |
Port Aggregation | Yes |
Switch and Hub : Physical Characteristics | |
Housing | - |
Installation | DIN-rail mounting, Wall mounting (with optional kit), Rack mounting (with optional kit) |
Operation Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | EMC, EMI, EMS, EN 50121-4, NEMA TS2, Vibration, Shock, Safety, Freefall, IEEE 1613, IEC 61850-3 |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Switch and Hub : Standards and Protocols | |
Protocols and work standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1D-2004m IEEE 802.1w, IEEE 802.1p, IEEE 802.1X |
Protocols and management standards | IPv4, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP HTTP, HTTPS, Telnet, Syslog, Private MIB |
Switch and Hub : Package Checklist | |
Hardware installation guide | Yes |
Power cable | No |
