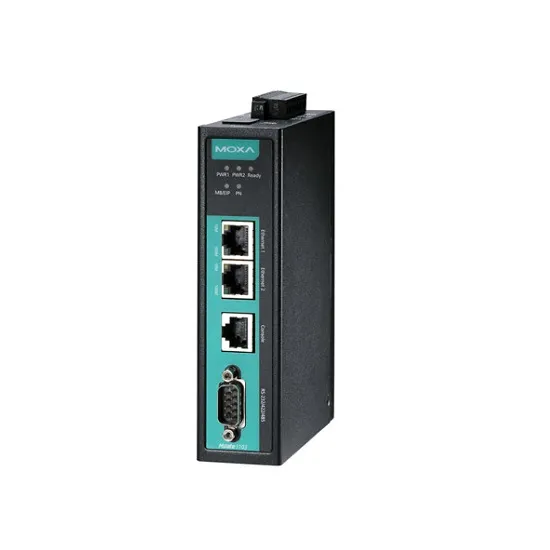

MOXA MGate 5103 Industrial Ethernet Gateway

Tags: Protocol Gateways , Modbus TCP Gateways , PROFINET Gateways , EtherNet/IP Gateways , Ethernet Gateways

Model: MGate 5103

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

Introduction

The MGate 5103 is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP, EtherNet/IP, and PROFINET network communications. To integrate existing Modbus devices onto a PROFINET network, use the MGate 5103 as a Modbus master/slave or EtherNet/IP adapter to collect data and exchange data with PROFINET devices. The latest exchange data will be stored in the gateway. The gateway will convert stored Modbus or EtherNet/IP data into PROFINET packets so the PROFINET IO Controller can control or monitor field devices.

The MGate 5103 Series comes with an illustrated Quick Setup guide designed to make configuration easy. With Quick Setup, you can easily access protocol conversion modes and finish the configuration in a few steps. The MGate 5103 Series also supports a GSDML export function. GSDML files can be imported into PROFINET PLCs to save time on PLC configuration.

MGate 5103 gateways support Modbus RTU/ASCII/TCP Protocol Traffic Monitor for easy troubleshooting, especially during the installation stage. Communication issues could be caused by incorrect software parameters, such as slave IDs and register addresses, that were entered incorrectly, or an incorrect command configuration. With Modbus RTU/ASCII/TCP Protocol Traffic Monitor, you can check the captured data and easily identify the root cause.

MGate 5103 supports a system log function that records events in the MGate; users can easily review log data remotely through the web console. The gateways also support status monitoring and fault protection functions. The status monitoring function notifies a PLC/DCS/SCADA system when a Modbus device gets disconnected or does not respond, in which case the process PLC/DCS gets the status of each end device and then issues alarms to notify operators.

Certifications

Features

Modbus/EtherNet/IP to PROFINET gateway
2 x 10/100Mbps T(x) ports and 1 x RS-232/422/485 port
12 to 48 VDC input power
Metal body
0 to 60°C operating temperature

industrial gateway : Ethernet Interface
Number of Ports	2 (1 IP; used for Ethernet cascading)
Speed	10/100 Mbps, Auto MDI/MDIX
Connector	8-pin RJ45
Magnetic Isolation Protection	1.5 kV (built-in)
Modbus TCP	Mode: Client/Server, Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23, Max. Number of Commands: 128, Max. Number of Connections: MGate as Modbus TCP Client: 32, MGate as Modbus TCP Server: 32, Max. Total I/O Data Size:, Input: 512 bytes, Output: 512 bytes
PROFINET	Type: Device/Slave, Max. data size per I/O transmission: Input: 512 bytes, Output: 512 bytes, Max. Number of Connections: MGate as PROFINET IO Device: 1 connection for read/write
EtherNet/IP	Class: Adapter, CIP Objects Supported: Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port, Max. Number of Connections: MGate as Adapter: 16 connections for read-only, 1 connection for read/write, Max. Total I/O Data Size: Input: 496 bytes, Output: 496 bytes
Protocols	EtherNet/IP, Modbus TCP, PROFINET RT
industrial gateway : Serial port specifications
Protocol	Modbus RTU/ASCII Master/Slave
RS-232 Signals	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Number of Ports	1
RS-422 Signals	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Signals	Tx+, Tx-, Rx+, Rx-, GND
Serial Standards	RS-232/422/485, software selectable
Connectors	DB9 male
RS-485-2w Signals	Data+, Data-, GND
RS-485 Data Direction Control	ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485	1 kΩ, 150 kΩ
Terminator for RS-485	120 Ω
Isolation	2 kV (built-in)
industrial gateway : Serial Communication Parameters
Data Bits	7, 8
Stop Bits	1, 2
Parity	Even, Odd, Space, Mark, None
Flow Control	RTS/CTS, RTS Toggle (RS-232 only)
Baudrate	50 bps to 921.6 kbps
industrial gateway : Software
Configuration Options	Web Console, Serial Console
Utility	MGate Manager for Windows 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1/10 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2
Support	MXconfig, MXview, SNMP (v1, v2, v3), Private MIB
industrial gateway : General
MTBF	859,422 hrs
industrial gateway : Power Requirements
Input Current	455 mA @ 12 VDC; 125 mA @ 48 VDC
Input Voltage	12 to 48 VDC
Power Connector	Terminal block
industrial gateway : Physical Characteristics
Dimensions	36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Housing	Metal, IP30
Operating Temperature	0 to 60°C (32 to 140°F)
Weight	507 g (1.12 lb)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Vibration	IEC 60068-2-6, IEC 60068-2-64
Shock	IEC 60068-2-27
Drop	IEC 60068-2-32
Safety	UL 508, EN 60950-1
Hazardous Location	Class 1 Division 2, ATEX, IECEx
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class B
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m, IEC 61000-4-8 PFMF
Storage Card Slot	1 microSD (SDHC) card slot supports up to 32 GB
