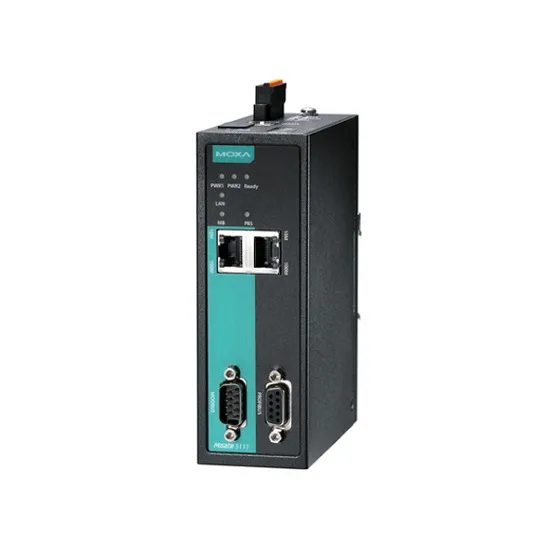

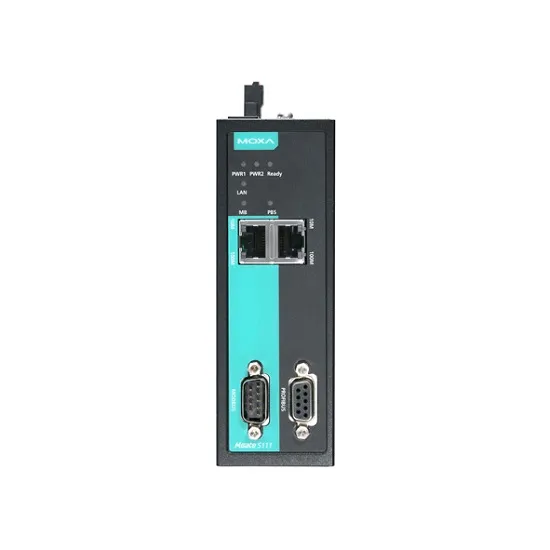

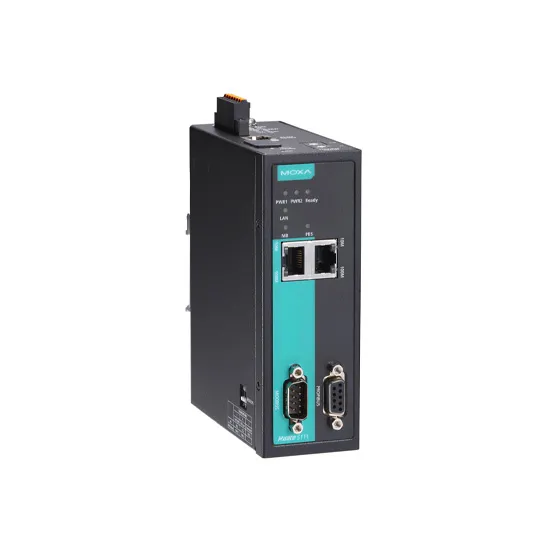

MOXA MGate 5111 Industrial Ethernet Gateway

Tags: Industrial Edge Connectivity , Protocol Gateways , Industrial Ethernet Gateways , Ethernet Gateways , PROFINET Gateways , Modbus TCP Gateways , Gateways , MOXA MGate 5111 Series

MOXA MGate 5111 Industrial Ethernet Gateway

Model: MGate 5111

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA MGate 5111 FEATURES

Converts Modbus, PROFINET, or EtherNet/IP to PROFIBUS
Security features based on IEC-62443
2 x 10/100Mbps T(x) ports, 1 x RS-232/422/485 Serial port and 1 x PROFIBUS port
Supports 12 to 48 VDC dual power inputs and 1 relay output
microSD card for configuration backup/duplication and event logs
Metal body design with IP30 protection
Serial and PROFIBUS ports with 2 kV isolation protection
0 to 60°C operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA MGate 5111 INTRODUCTION

MGate 5111 industrial Ethernet gateways convert data between the Modbus RTU/ASCII/TCP, EtherNet/IP, PROFINET, and PROFIBUS protocols. All models are protected by rugged metal housing, are DIN-rail mountable, and offer built-in serial isolation. Modbus is one of the most widely used industrial communication protocols, and EtherNet/IP, PROFINET, and PROFIBUS are commonly used in factory automation and process automation. The MGate 5111 supports both Modbus RTU/ASCII/TCP master and slave modes so that you can easily connect your Modbus device to PROFIBUS PLCs or DCSs, such as Siemens PLCs.

For system integration, the MGate 5111 can connect to EtherNet/IP PLC/SCADA systems, such as Rockwell Automation PLCs, to PROFIBUS PLC/ DCS systems, or between a new Siemens PLC system that supports PROFINET to an existing PROFIBUS system. The MGate 5111 gateways are designed for easy configuration and quick maintenance. A handy web console can be used to implement remote maintenance tasks, and the configuration wizard UI lets you quickly set up your gateway. A comprehensive collection of troubleshooting tools reduces configuration time and system downtime. The rugged design is suitable for industrial applications, such as factory automation, power, oil and gas, water and wastewater, and other process automation industries.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA MGate 5111 Industrial Ethernet Gateway online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the MGate 5111-T model in the MOXA MGate 5111 Series.

MOXA MGate 5111 CERTIFICATIONS

Industrial Gateway : Ethernet Interface
Number of Ports	2 x 10/100BaseT(X) Ports (RJ45 connector), Auto MDI/MDI-X connection
Magnetic Isolation Protection	1.5 kV (built-in)
Industrial Gateway : Serial port specifications
Console Port	RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
RS-232 Signals	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Number of Ports	1
RS-422 Signals	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Signals	Tx+, Tx-, Rx+, Rx-, GND
Serial Standards	RS-232/422/485
Connectors	DB9 male
RS-485-2w Signals	Data+, Data-, GND
RS-485 Data Direction Control	Automatic Data Direction Control (ADDC)
Pull High/Low Resistor for RS-485	1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485	120 ohms
Isolation	2 kV (built-in)
Industrial Gateway : Standards and protocols
Modbus RTU/ASCII	Mode: Master, Slave; Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23, Max. No. of Commands: 128; Input Data Size: 2048 bytes; Output Data Size: 2048 bytes
Modbus TCP	Mode: Client/Server, Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23, Max. Number of Commands: 128, Max. Number of Client Connections: 16, Max. No. of Server Connections: 32, Input Data Size: 2048 bytes, Output Data Size: 2048 bytes
PROFINET	Mode: IO Device; Max. No. of IO Controller Connections: 1 (for read/write); Input Data Size: 512; Output Data Size: 512
EtherNet/IP	Mode: Adapter; CIP Objects Supported: Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port; Max. No. of Scanner Connections: 1 (for read-only), 1 (for read/write); Input Data Size: 496 bytes; Output Data Size: 496 bytes
PROFIBUS	Industrial Protocols: PROFIBUS DP; No. of Ports: 1; Connector: DB9 female; Baudrate: 9600 bps to 12 Mbps; Isolation: 2 kV (built-in); Signals: PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V; Rotary Switch: PROFIBUS addresses 0-99 (addresses 100-125 supported through software configuration); Mode: DP-V0 Slave; Max. No. of Master Connections: 1; Max. No. of PROFIBUS I/O Modules: 24; Input Data Size: 244 bytes; Output Data Size: 244 bytes
Industrial Gateway : Serial Communication Parameters
Data Bits	7, 8
Stop Bits	1, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS Toggle (RS-232 only), RTS/CTS
Baudrate	50 bps to 921.6 kbps
Industrial Gateway : Software
Configuration Options	Ethernet: Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console, Serial: Serial Console
Industrial Protocols	Ethernet: Modbus TCP Client (Master), Modbus TCP Server (Slave), PROFINET IO Device, EtherNet/IP Adapter, Serial: PROFIBUS DP-V0 Slave, Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave
Management	ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MIB	RFC1213, RFC1317
Time Management	NTP Client
Industrial Gateway : General
MTBF	718,131 hrs
Industrial Gateway : Memory
microSD Slot	Up to 32 GB (SD 2.0 compatible)
Industrial Gateway : Power Requirements
Input Current	416 mA @ 12 VDC
Input Voltage	12 to 48 VDC
Power Connector	Spring-type Euroblock terminal
Industrial Gateway : Physical Characteristics
Dimensions	45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in)
Housing	Metal
Operating Temperature	0 to 60°C (32 to 140°F)
Weight	589 g (1.30 lb)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Vibration	IEC 60068-2-6, IEC 60068-2-64
Shock	IEC 60068-2-27
Drop	-
Safety	EN 60950-1, UL 61010-2-201
Hazardous Location	ATEX, Class I Division 2, IECEx
EMC	EN 61000-6-2/-6-4
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF
