Introduction

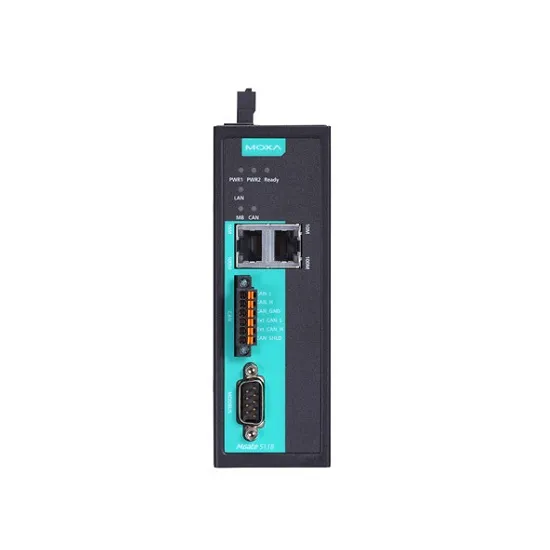

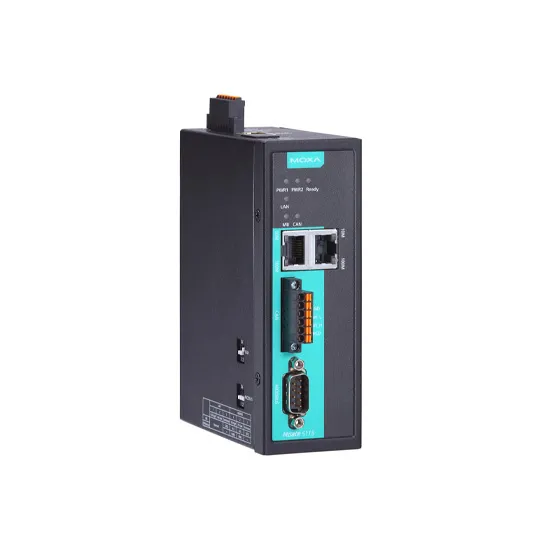

The MGate 5118 industrial protocol gateways support the SAE J1939 protocol, which is based on the CAN bus (Controller Area Network). SAE J1939 is used to implement communication and diagnostics among vehicle components, diesel engine generators, and compression engines, and is suitable for the heavy-duty truck industry and backup power systems. It is now common to use an engine control unit (ECU) to control these kinds of devices, and more and more applications are using PLCs for process automation to monitor the status of J1939 devices connected behind the ECU.
The MGate 5118 gateways support the Modbus RTU/ASCII/TCP, EtherNet/IP, and PROFINET protocols to support most PLC applications. Devices that support the J1939 protocol can be monitored and controlled by PLCs and SCADA systems that use the Modbus RTU/ASCII/TCP, EtherNet/IP, and PROFINET protocols. With the MGate 5118, you can use the same gateway in a variety of PLC environments.
Certifications
Features
- CAN-J1939 to Modbus/PROFINET/EtherNet/IP gateway
- 2 x 10/100Mbps T(x) ports and 1 x RS-232/422/485 port
- 12 to 48 VDC input power
- Metal body
- 0 to 60°C operating temperature
