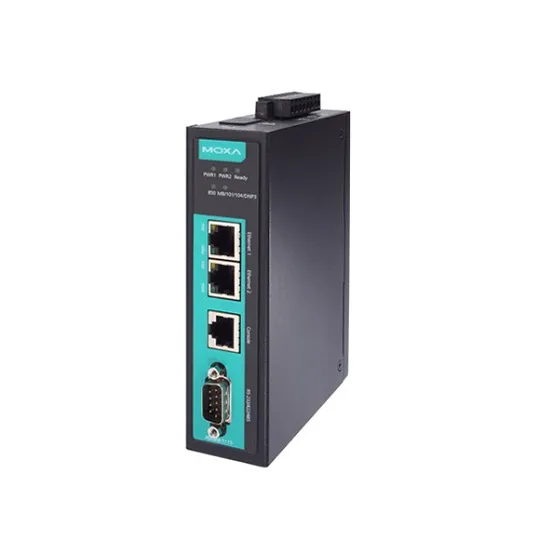

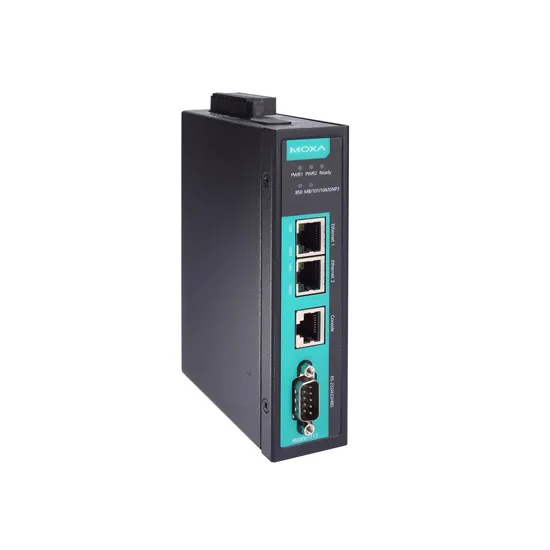

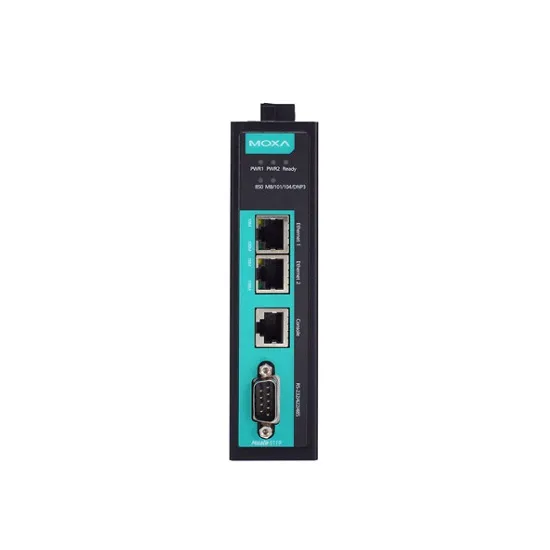

MOXA MGate 5119-T Industrial Ethernet Gateway

MOXA MGate 5119-T Industrial Ethernet Gateway
  • Model: MGate 5119-T
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction

The MGate 5119 is an industrial Ethernet gateway with 2 Ethernet ports and 1 RS-232/422/485 serial port. To integrate Modbus, IEC 60870-5-101, and IEC 60870-5-104 devices with an IEC 61850 MMS network, use the MGate 5119 as a Modbus master/client, IEC 60870-5-101/104 master, and DNP3 serial/TCP master to collect and exchange data with IEC 61850 MMS systems.

Easy Configuration via SCL Generator

The MGate 5119 as an IEC 61850 MMS server, typically, requires the import of an SCL file generated by a 3rd party tool. This can be time-consuming and increase costs. To overcome this pain point, MGate 5119 has a built-in SCL generator, which can easily generate SCL files through the web console and make them available almost immediately saving configuration time and cost.

Easy Troubleshooting via Traffic Monitor

MGate 5119 Series gateways support Modbus RTU/ASCII/TCP, IEC 60870-5-101, IEC 60870-5-104, and IEC 61850 MMS Protocol Traffic Monitor for easy troubleshooting, especially during the installation stage. It is worth mentioning that traffic logs can be viewed in the popular troubleshooting tool, Wireshark. With this feature, you can easily analyze traffic to determine the root cause of a problem.

Certifications




Features


  • DNP3/IEC 101/IEC 104/Modbus-to-IEC 61850 gateway
  • 2 x 10/100Mbps T(x) ports and 1 x RS-232/422/485 port
  • 12 to 48 VDC input power
  • Metal body
  • -40 to 75°C operating temperature
  • Serial port with 2 kV isolation protection
  • Supports IEC 61850 MMS and DNP3 TCP protocol encryption
  • Security features based on IEC 62443/NERC CIP
  • Compliant with IEC 61850-3 and IEEE 1613
  • Built-in SCL file generator for easy configuration
industrial gateway : Ethernet Interface
Number of Ports 2 x 10/100BaseT(X) Ports (RJ45 connector)
Speed 10/100 Mbps, Auto MDI/MDIX
Connector RJ45
Magnetic Isolation Protection 1.5 kV (built-in)
Protocols Modbus TCP Client (Master), IEC 60870-5-104 Client, IEC 61850 MMS Server, DNP3 TCP Master
industrial gateway : Serial port specifications
Flow Control RTS Toggle (RS-232 only), RTS/CTS
RS-232 Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Signals Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Signals Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals Tx+, Tx-, Rx+, Rx-, GND
industrial gateway : Serial Communication Parameters
Data Bits 7, 8
Stop Bits 1, 2
Parity Even, Mark, None, Odd, Space
Baudrate 50 bps to 921.6 kbps
industrial gateway : Software
Configuration Options Web Console (HTTP/HTTPS)
Utility Device Search Utility (DSU)
Support -
Network Protocols Modbus RTU/ASCII Master, IEC 60870-5-101 Master (Balanced/Unbalanced), DNP3 Serial Master
industrial gateway : Power Requirements
Input Voltage 12 to 48 VDC
Power Connector Screw-fastened Euroblock terminal
industrial gateway : Physical Characteristics
Dimensions 36 x 120 x 150 mm (1.42 x 4.72 x 5.91 in)
Housing Metal
Operating Temperature -40 to 75°C (-40 to 167°F)
Weight 517 g (1.14 lb)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Vibration IEC 60068-2-6, IEC 60068-2-64, IEC 61850-3 Edition 2.0
Shock IEC 60068-2-27
Drop -
Safety EN 60950-1, IEC 60950-1, IEC 62368-1, UL 60950-1, EN 62368-1, UL 62368-1
Hazardous Location -
EMC EN 55032/35
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V/m IEC 61000-4-8 PFMF: 100 A/m
Storage Card Slot Up to 32 GB (SD 2.0 compatible)
