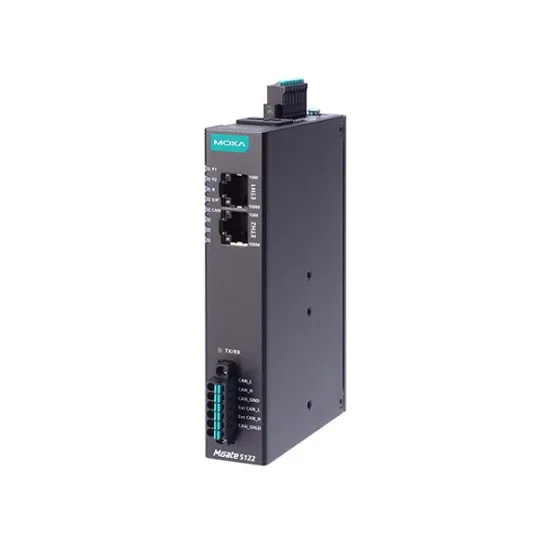

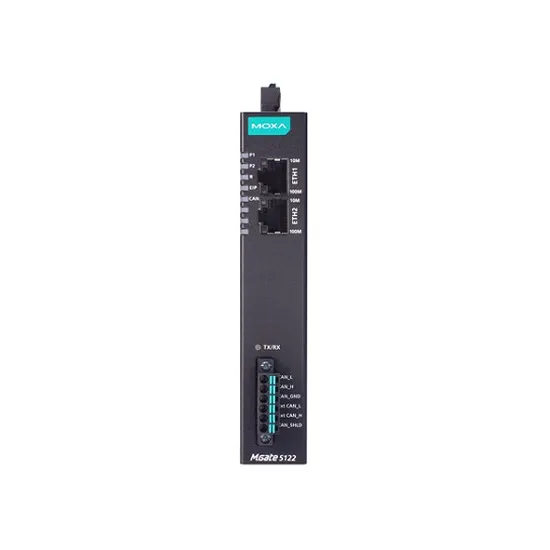

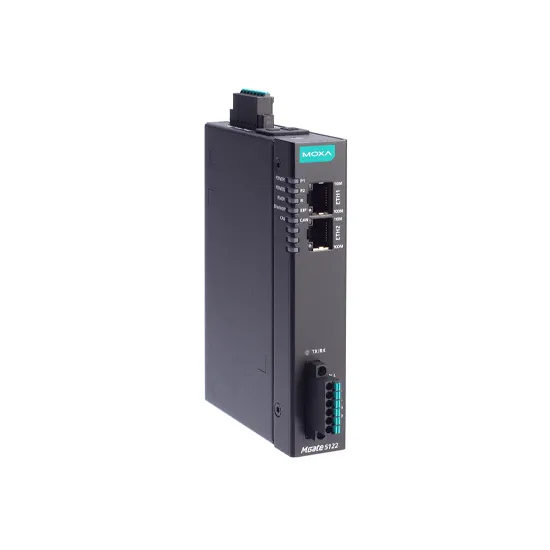

MOXA MGate 5122-T Industrial Ethernet Gateway

Tags: Industrial Edge Connectivity , Protocol Gateways , Industrial Ethernet Gateways , Ethernet Gateways , EtherNet/IP Gateways , EtherNet/IP , Gateways , MOXA MGate 5122 Series

MOXA MGate 5122-T Industrial Ethernet Gateway

Model: MGate 5122-T

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA MGate 5122-T FEATURES

CAN-J1939 to EtherNet/IP gateway
2 x 10/100Mbps T(x) ports and 1 x Serial Port
12 to 48 VDC input power
Metal body
-40 to 75°C operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA MGate 5122-T INTRODUCTION

The MGate 5122 is an industrial Ethernet gateway for converting CANopen or J1939 to EtherNet/IP network communications. To integrate existing CANopen or J1939 devices onto an EtherNet/IP network, use the MGate 5122 as a CANopen or J1939 master to collect data and exchange data with the EtherNet/IP scanner. All models are protected by a rugged and compact metal housing and are DIN-rail mountable. The rugged design is suitable for industrial applications such as factory automation and other process automation industries.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA MGate 5122-T Industrial Ethernet Gateway online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the MGate 5122 model in the MOXA MGate 5122 Series.

MOXA MGate 5122-T CERTIFICATIONS

Industrial Gateway : Ethernet Interface
Number of Ports	2 x 10/100BaseT(X) Ports (RJ45 connector), Auto MDI/MDI-X connection
Magnetic Isolation Protection	1.5 kV (built-in)
Industrial Gateway : Industrial Protocols
Protocols	Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3)
Industrial Gateway : Standards and protocols
EtherNet/IP	Mode: Adapter; CIP Objects Supported: Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port; Max. No. of Scanner Connections: 4; Input Data Size: 496 bytes (bytes/connection, total: 1984 bytes); Output Data Size: 496 bytes (bytes/connection, total: 1984 bytes)
CAN	(CAN Interface) No. of Ports: 1; Connector: Spring-type Euroblock terminal; Standards: ISO 11898-2; Baudrate CANopen: 10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1 Mbps, Baudrate J1939: 250 kbps, 500 kbps, 1 Mbps; Terminator: 120 ohms, software configurable; Signals: CAN_H, CAN_L, GND, Ext_CAN_H, Ext_CAN_L, CAN_Shield; (CANopen) Mode: Master; Max No. of Nodes: 64; Max No. of Receive PDOs: 256; Max No. of Transmit PDOs: 256; SDOs: Supported; Input Data Size: 2048 bytes; Output Data Size: 2048 bytes
J1939	Max. No. of Commands: 256; Input Data Size: 2048 bytes; Output Data Size: 2048 bytes
Industrial Gateway : Software
Configuration Options	Web Console (HTTPS), Device Search Utility (DSU)
Industrial Protocols	Ethernet: EtherNet/IP Adapter; CAN: CANopen master, J1939
Management	ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, UDP
MIB	RFC1213
Time Management	NTP Client
Industrial Gateway : General
MTBF	1,408,984 hrs
Industrial Gateway : Memory
microSD Slot	Up to 32 GB (SD 2.0 compatible)
Industrial Gateway : Power Requirements
Input Current	455 mA (max)
Input Voltage	12 to 48 VDC
Power Connector	Spring-type Euroblock terminal
Industrial Gateway : Security
Authentication	Local database
Encryption	HTTPS, AES-128, AES-256, SHA-256
Industrial Gateway : Physical Characteristics
Dimensions	25 x 90 x 129.6 mm (0.98 x 3.54 x 5.1 in)
Housing	Metal, IP30 protection
Operating Temperature	-40 to 75°C (-40 to 167°F)
Weight	294 g (0.65 lb)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Vibration	IEC 60068-2-6, IEC 60068-2-64
Shock	IEC 60068-2-27
Safety	EN 61010-2-201, UL 61010-2-201
EMC	EN 61000-6-2/-6-4
EMI	FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF
Freefall	IEC 60068-2-31
