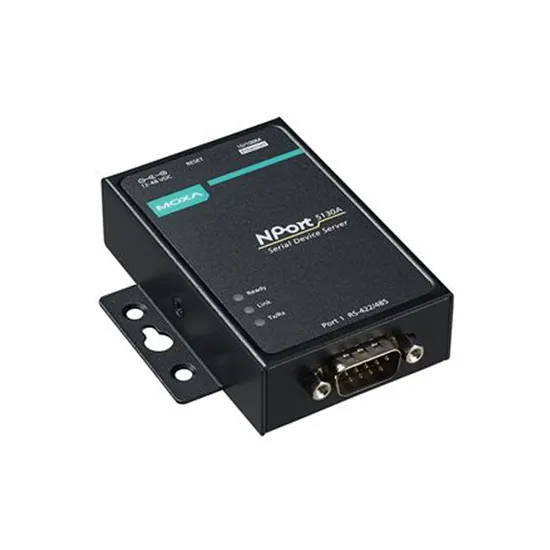

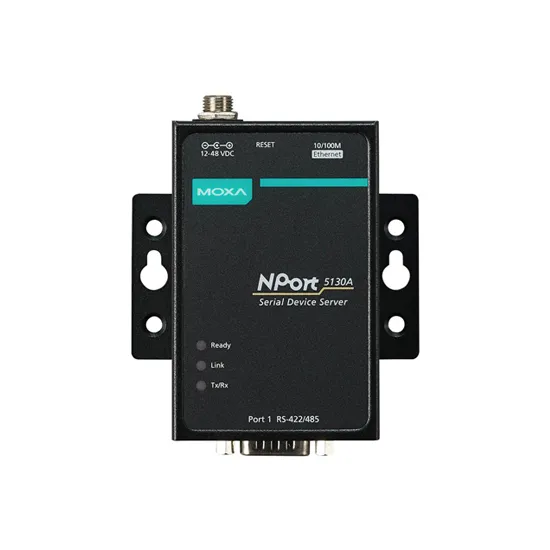

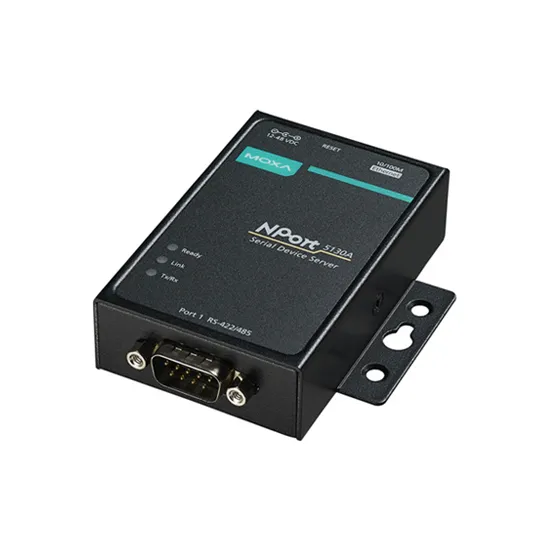

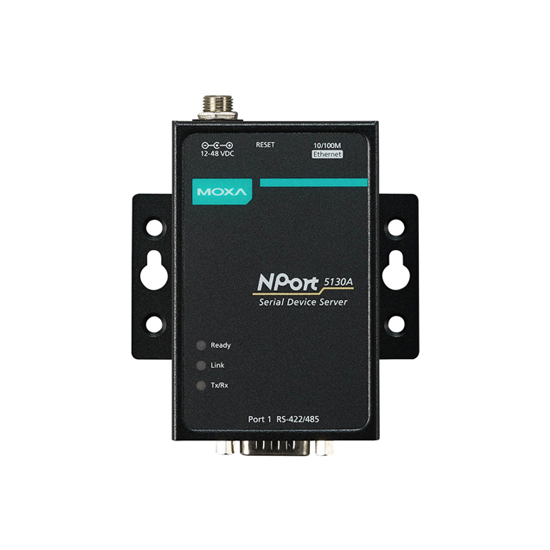

MOXA NPort 5130A Serial to Ethernet Device Server

Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction

The NPort® 5100A device servers are designed to make serial devices network-ready in an instant and give your PC software direct access to serial devices from anywhere on the network. The NPort® 5100A device servers are ultra-lean, ruggedized, and user-friendly, making simple and reliable serial-to-Ethernet solutions possible.

NPort® 5100A device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP Manager, an email alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a password change.

Surge, which is typically caused by high voltages that result from switching and lightning transients, is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort® 5100A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This state-of-the-art surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions.

Certifications




Features


  • 1 x 10/100Mbps T(x) port and 1 x RS-422/485 Serial port
  • 12 to 48 VDC input power
  • Metal body
  • 0 to 55°C operating temperature
  • Surge Protection for Serial, Ethernet, and Power
serial-to-ethernet : Interface
10Mbps RJ-45 Ports No
10/100Mb RJ45 (Megabit) Ports Yes : 1 Port
RS-232 Ports No
RS-422/485 Ports Yes : 1 Port
RS-232/422/485 Ports No
serial-to-ethernet : Serial port specifications
Serial connection type DB9-M
Serial Communication Parameters Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
Data transfer speed ( Baudrate ) 0.05Kbps to 921.6Kbps
Protection against electrostatic discharge 15KV
Electrical isolation No
serial-to-ethernet : Communication details
Wireless Standards No
Maximum data transfer speed No
Maximum direct range No
serial-to-ethernet : General
Management Web Console, Telnet Console, Windows Utility
MTBF 2,231,530 hour
Compatible operating systems Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers SCO Unix, SCO OpenServer, UnixWare 7, QNX, 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers Linux 2.4.x, 2.6.x, 3.x
serial-to-ethernet : Power Requirements
Power Consumption (Output Adapter) 12V DC, 0.08A to 48V DC
serial-to-ethernet : Security
Security -
Encryption -
serial-to-ethernet : Features and capabilities
Display No
Keyboard No
The automatic restart (reset) Yes : WDT
Alarm feature No
serial-to-ethernet : Standards and protocols
Network protocol ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2, ARP
serial-to-ethernet : Physical Characteristics
Dimensions 52x80x22mm
Safety UL 60950-1
EMC EN 55022/24
EMI CISPR 22, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs
Marine No
Medical No
LAN port Protection against magnetic fields 1.5KV
Housing Metal
Operating Temperature 0 to 60 ° C
Storage Temperature -40 to 75 ° C
Altitude -
Operation Humidity 5% to %95 RH non-condensing
Weight 0.34Kg
