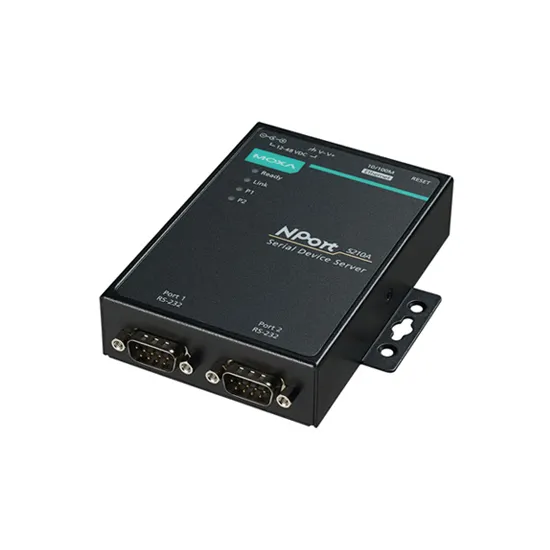

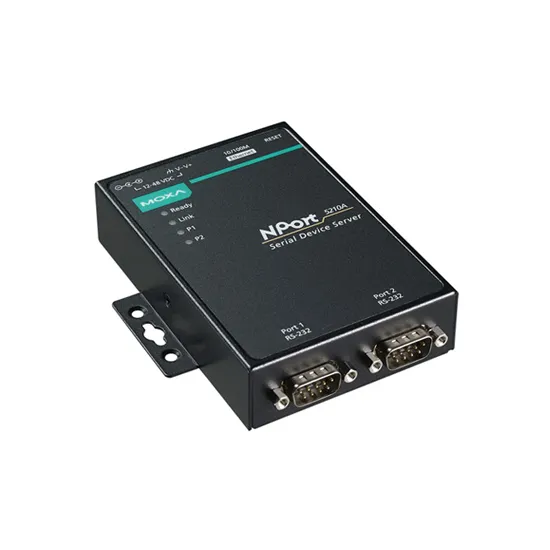

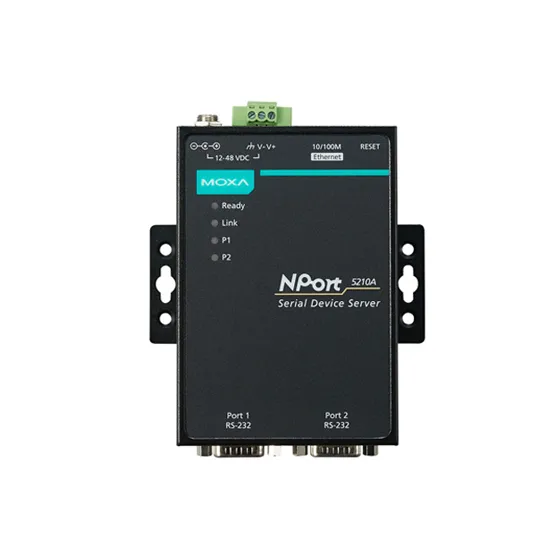

MOXA NPort 5210A Serial to Ethernet Device Server

Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction

The NPort® 5200A device servers are designed to make serial devices network-ready in an instant and give your PC software direct access to serial devices from anywhere on the network. The NPort® 5200A device servers are ultra-lean, ruggedized, and user-friendly, making simple and reliable serial-to-Ethernet solutions possible.

Surge, which is typically caused by high voltages that result from switching and lightning transients, is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort® 5200A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This state-of-the-art surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions.

The NPort® 5200A’s 3-step web-based configuration tool is straightforward and user-friendly. The NPort® 5200A’s web console guides users through three simple configuration steps that are necessary to activate the serial-to-Ethernet application. With this fast 3-step web-based configuration, a user only needs to spend an average of 30 seconds to complete the NPort® settings and enable the application, saving a great amount of time and effort.

Certifications




Features


  • 1 x 10/100Mbps T(x) port and 2 x RS-232 Serial ports
  • 12 to 48 VDC input power
  • Metal body
  • 0 to 55°C operating temperature
  • Surge protection for serial, Ethernet and power
serial-to-ethernet : Interface
10Mbps RJ-45 Ports No
10/100Mb RJ45 (Megabit) Ports Yes : 1 Port
RS-232 Ports Yes : 2 Ports
RS-422/485 Ports No
RS-232/422/485 Ports No
serial-to-ethernet : Serial port specifications
Serial connection type DB9-M
Serial Communication Parameters Data Bits: 5, 6, 7, 8; Stop Bits: 1, 1.5, 2; Parity: None, Even, Odd, Space, Mark
Flow Control RTS/CTS, DTR/DSR, XON/XOFF
Data transfer speed ( Baudrate ) 0.05Kbps to 921.6Kbps
Protection against electrostatic discharge 15KV
Electrical isolation No
serial-to-ethernet : Communication details
Wireless Standards No
Maximum data transfer speed No
Maximum direct range No
serial-to-ethernet : General
Management Web Console, Telnet Console, Serial Console, Windows Utility
MTBF 847750 hour
Compatible operating systems Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers Linux 2.4.x, 2.6.x, 3.x
serial-to-ethernet : Power Requirements
Power Consumption (Output Adapter) 12V DC, 0.119A and 24V DC, 0.065A
serial-to-ethernet : Security
Security -
serial-to-ethernet : Features and capabilities
Display No
Keyboard No
The automatic restart (reset) Yes : WDT
Alarm feature No
serial-to-ethernet : Standards and protocols
Network protocol ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2
Data transfer protocol -
serial-to-ethernet : Physical Characteristics
Dimensions 77x111x26mm
Safety UL 60950-1, EN 60950-1
EMC CE, FCC
EMI EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS EN 55024
Marine No
Medical No
LAN port Protection against magnetic fields 1.5KV
Housing Metal
Operating Temperature 0 to 60 ° C
Storage Temperature -40 to 75 ° C
Altitude 2000m
Operation Humidity 5% to %95 RH non-condensing
Weight 0.34Kg
