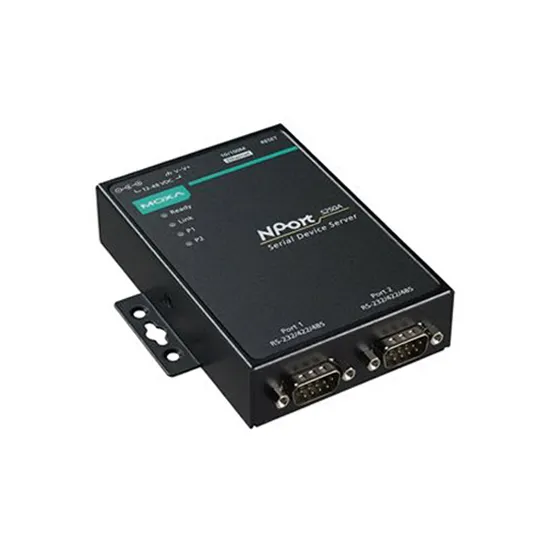

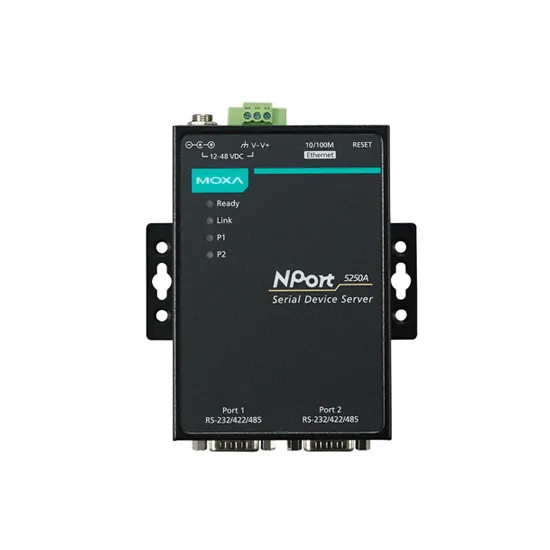

MOXA NPort 5250A-T Serial to Ethernet Device Server
MOXA NPort 5250A-T Serial to Ethernet Device Server
- Model: NPort 5250A-T
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
The NPort® 5200A device servers are designed to make serial devices network-ready in an instant and give your PC software direct access to serial devices from anywhere on the network. The NPort® 5200A device servers are ultra-lean, ruggedized, and user-friendly, making simple and reliable serial-to-Ethernet solutions possible.
Surge, which is typically caused by high voltages that result from switching and lightning transients, is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort® 5200A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This state-of-the-art surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions.
The NPort® 5200A’s 3-step web-based configuration tool is straightforward and user-friendly. The NPort® 5200A’s web console guides users through three simple configuration steps that are necessary to activate the serial-to-Ethernet application. With this fast 3-step web-based configuration, a user only needs to spend an average of 30 seconds to complete the NPort® settings and enable the application, saving a great amount of time and effort.
Certifications
Features
- 1 x 10/100Mbps T(x) port and 2 x RS-232/422/485 Serial ports
- 12 to 48 VDC input power
- Metal body
- -40 to 75°C operating temperature
- Surge protection for serial, Ethernet and power
serial-to-ethernet : Interface | |
10Mbps RJ-45 Ports | No |
10/100Mb RJ45 (Megabit) Ports | Yes: 1 Port |
RS-232 Ports | No |
RS-422/485 Ports | No |
RS-232/422/485 Ports | Yes: 2 Ports |
serial-to-ethernet : Serial port specifications | |
Serial connection type | DB9-M |
Serial Communication Parameters | Data Bits: 5, 6, 7, 8; Stop Bits: 1, 1.5, 2; Parity: None, Even, Odd, Space, Mark |
Flow Control | RTS/CTS, XON/XOFF |
Data transfer speed ( Baudrate ) | 0.05Kbps to 921.6Kbps |
Protection against electrostatic discharge | 15KV |
Electrical isolation | No |
serial-to-ethernet : Communication details | |
Wireless Standards | No |
Maximum data transfer speed | No |
Maximum direct range | No |
serial-to-ethernet : General | |
Management | Web Console, Telnet Console, Serial Console, Windows Utility |
MTBF | 847750 hour |
Compatible operating systems | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
Linux Real TTY Drivers | Linux |
serial-to-ethernet : Power Requirements | |
Power Consumption (Output Adapter) | 12V DC, 0.35A and 24V DC, 0.065A |
serial-to-ethernet : Security | |
Security | - |
Encryption | - |
serial-to-ethernet : Features and capabilities | |
Display | No |
Keyboard | No |
The automatic restart (reset) | Yes: WDT |
Alarm feature | No |
serial-to-ethernet : Standards and protocols | |
Network protocol | ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2 |
Data transfer protocol | - |
serial-to-ethernet : Physical Characteristics | |
Dimensions | 77x111x26mm |
Safety | UL 60950-1, EN 60950-1 |
EMC | CE, FCC |
EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
EMS | EN 55024 |
Marine | No |
Medical | No |
LAN port Protection against magnetic fields | 1.5KV |
Housing | Metal |
Storage Temperature | -40 to 75 ° C |
Altitude | 2000m |
Operation Humidity | 5% to %95 RH non-condensing |
