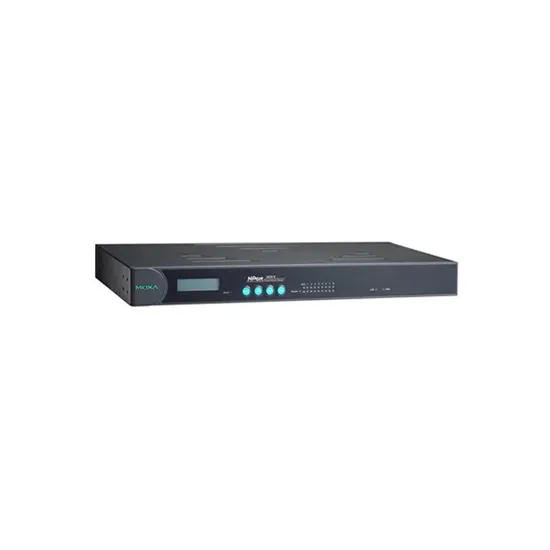

MOXA NPort 5650-8 Serial to Ethernet Rackmount Serial Device Server

Tags: Industrial Edge Connectivity , Serial Device Servers , General Device Servers , Serial to Ethernet Device Servers , Industrial Serial Connectivity , Industrial Serial Device Server , NPort , Converters , MOXA NPort 5600 Series

Model: NPort 5650-8

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA NPort 5650-8 FEATURES

1 x 10/100Mbps T(x) port and 8 x RS-232/422/485 Serial ports
100-240 VAC input power
Metal body
0 to 60°C operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA NPort 5650-8 INTRODUCTION

With the NPort® 5600 Rackmount Series, you not only protect your current hardware investment but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.

NPort® 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort® 5600 device servers suitable for a standard 19-inch rackmount, allowing you to simplify operational, maintenance, and administrative tasks.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA NPort 5650-8 Serial to Ethernet Rackmount Serial Device Server online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the NPort 5610-8, NPort 5610-16-48V, and NPort 5610-16 models in the MOXA NPort 5600 Series.

MOXA NPort 5650-8 CERTIFICATIONS

serial-to-ethernet : Interface
10Mbps RJ-45 Ports	No
10/100Mb RJ45 (Megabit) Ports	Yes : 1 Port
RS-232 Ports	No
RS-422/485 Ports	No
RS-232/422/485 Ports	Yes : 8 Ports
serial-to-ethernet : Serial port specifications
Serial connection type	RJ45
Serial Communication Parameters	Data Bits: 5, 6, 7, 8; Stop Bits: 1, 1.5, 2; Parity: None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF
Data transfer speed ( Baudrate )	Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Protection against electrostatic discharge	15KV
Electrical isolation	No
serial-to-ethernet : Communication details
Wireless Standards	No
Maximum data transfer speed	No
Maximum direct range	No
serial-to-ethernet : General
Management	Web Console, Telnet Console, Windows Utility
MTBF	117584 hour
Compatible operating systems	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers	SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers	Linux 2.4.x, 2.6.x, 3.x
serial-to-ethernet : Power Requirements
Power Consumption (Output Adapter)	100V AC to 240V AC
Input Voltage	100 to 240 VAC, 47 to 63 Hz
Input Current	158 mA @ 100 VAC
serial-to-ethernet : Security
Security	Authentication: Local database
Encryption	HTTPS, AES-128, RSA-1024, SHA-1, SHA-256
serial-to-ethernet : Features and capabilities
Display	Yes
Keyboard	Yes
The automatic restart (reset)	Yes : WDT
Alarm feature	Yes : Buzzer and RTC
serial-to-ethernet : Standards and protocols
Network protocol	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP, PPP, SLIP, RTelnet, RFC2217
Data transfer protocol	-
serial-to-ethernet : Physical Characteristics
Dimensions	(with ears): 480 x 45 x 198 mm, (without ears): 440 x 45 x 198 mm
Safety	UL 60950-1, EN 60950-1
EMC	55022/24
EMI	EN55022 Class A, FCC part 15 Subpart B Class A
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11
Marine	No
Medical	EN 55011: 2007+A2: 2007 Class A (Group 1) compliant, EN 60601-1-2: 2007 compliant
LAN port Protection against magnetic fields	1.5KV
Housing	Metal
Operating Temperature	0 to 60°C (32 to 140°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Altitude	-
Operation Humidity	5 to 95% (non-condensing)
Weight	2,310 g (5.09 lb)
