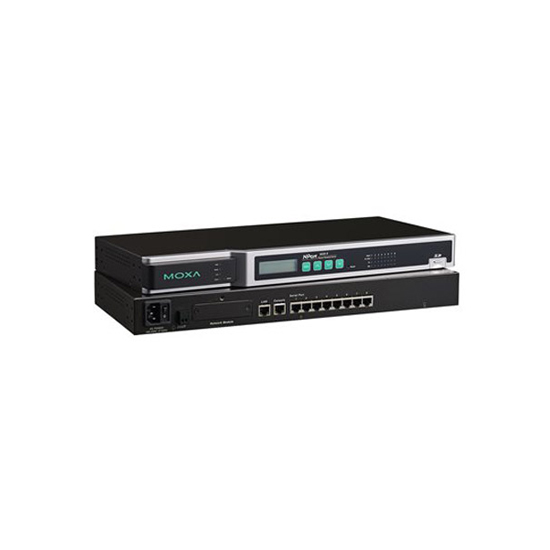

MOXA NPort 6650-8 Serial to Ethernet Device Server

MOXA NPort 6650-8 Serial to Ethernet Device Server
  • Model: NPort 6650-8
$0.00
Ex Tax: $0.00

    MOXA NPort 6650-8 FEATURES

    • 1 x 10/100Mbps T(x) port and 32 x RS-232/422/485 Serial ports
    • 88 to 300 VDC input power
    • Metal body
    • -40 to 85°C Operating temperature
    • Supports IPv6
    • Security features based on IEC 62443


    Over 40 Years in Business
    Over 40 Years in Business
    Successful track record across Canada
    Full Engineering Services
    Full Engineering Services
    A powerhouse to provide consultation, training, and support
    Strong Brand Portfolio
    Strong Brand Portfolio
    Top-notch products from superb global and local suppliers
    Advanced Technologies
    Advanced Technologies
    From legacy and mainstream to advanced Industry 4.0

    MOXA NPort 6650-8 INTRODUCTION

    The NPort® 6000 is a terminal server that uses the SSL and SSH protocols to transmit encrypted serial data over Ethernet. Up to 32 serial devices of any type can be connected to the NPort® 6000, using the same IP address. The Ethernet port can be configured for a normal or secure TCP/IP connection. The NPort® 6000 secure device servers are the right choice for applications that use large numbers of serial devices packed into a small space. Security breaches are intolerable and the NPort® 6000 Series ensures data transmission integrity with support for DES, 3DES, and AES encryption algorithms. Serial devices of any type can be connected to the NPort® 6000, and each serial port on the NPort® 6000 can be configured independently for RS-232, RS-422, or RS-485 transmission.

    As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA NPort 6650-8 Serial to Ethernet Device Server online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

    You can also find the NPort 6650-16-48VNPort 6650-8-HV-T, and NPort 6650-32-48V models in the MOXA NPort 6400/6600 Series.

    MOXA NPort 6650-8 CERTIFICATIONS



    serial-to-ethernet : Serial Interface
    Number of Ports 8
    Serial Standards RS-232, RS-422, RS-485
    Connector 8-pin RJ45
    RS-485 Data Direction Control ADDC® (automatic data direction control)
    Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms
    Terminator for RS-485 120 ohms
    serial-to-ethernet : General
    Management ARP, BOOTP, DHCP Client, DNS, HTTP, IPv4/IPv6, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, PPPOE, ICMP
    Fixed TTY Drivers SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
    Linux Real TTY Drivers Kernel version: 2.4.x, 2.6.x, 3.x, 4.x
    Alert Tools Built-in buzzer and RTC (real-time clock)
    Automatic Reboot Trigger Built-in WDT
    serial-to-ethernet : Serial Communication Parameters
    Data Bits 5, 6, 7, 8
    Stop Bits 1, 1.5, 2
    Parity Even, Odd, Space, Mark, None
    Flow Control RTS/CTS, DTR/DSR, XON/XOFF
    Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates)
    serial-to-ethernet : Power Requirements
    Input Voltage 100 to 240 VAC
    serial-to-ethernet : Serial Signals
    RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
    RS-422 Tx+, Tx-, Rx+, Rx-, GND
    RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
    RS-485-2w Data+, Data-, GND
    serial-to-ethernet : Ethernet Interface
    Standards Telcordia (Bellcore) Standard TR/SR
    Magnetic Isolation Protection 1.5 kV (built-in)
    serial-to-ethernet : Physical Characteristics
    Safety UL 60950-1
    EMC EN 55032/24
    EMI CISPR 32, FCC Part 15B Class A
    EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs
    Housing Metal
    Operating Temperature 0 to 55°C (32 to 131°F)
    Storage Temperature -40 to 75°C (-40 to 167°F)
    Operation Humidity 5 to 95% (non-condensing)
