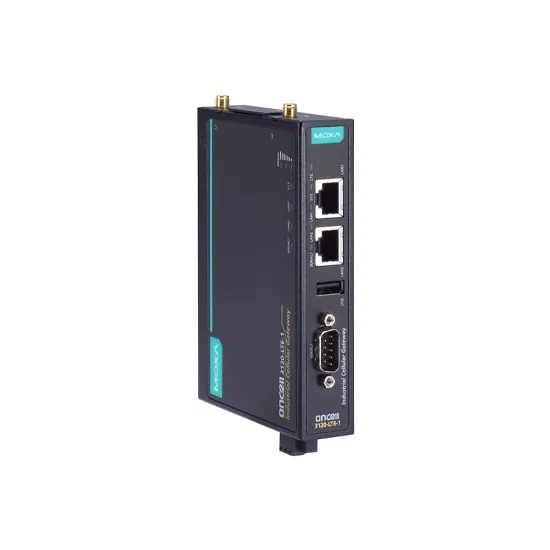

MOXA OnCell 3120-LTE-1-AU Industrial Cellular Gateway
MOXA OnCell 3120-LTE-1-AU Industrial Cellular Gateway
- Model: OnCell 3120-LTE-1-AU
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
The OnCell 3120-LTE-1 Series is a set of reliable, secure, low-power consumption LTE gateways with state-of-the-art global LTE Cat 1 coverage. These LTE cellular gateways provide reliable connections from remote serial and Ethernet devices to a cellular network so that your applications can be easily implemented for IIoT remote-access scenarios. With its efficient power-saving features, the OnCell 3120-LTE-1 Series lowers power consumption to less than 40 mW when in standby mode which can be managed using schedules. To enhance industrial reliability, the OnCell 3120- LTE-1 features GuaranLink to ensure robust cellular connectivity.
Remote Access Gateway with VPN and Network Security
• Managed by centralized IP management software, OnCell Central Manager
• Secure and reliable VPN support with NAT/OpenVPN/GRE/IPsec functionality
• Cybersecurity features based on IEC 62443-4-2
Industrial-grade Reliability
• Rugged hardware design well suited for hazardous locations (ATEX, C1D2, IECEx)
• GuaranLink for reliable cellular connectivity
• Low power consumption: Less than 40 mW in standby mode
Certifications
Features
- Low power consumption (40 mW on standby)
- GuaranLink for reliable cellular connectivity
- Dual cellular operator backup with dual-SIM
- Rugged hardware design well suited for hazardous locations (ATEX Zone 2/ IECEx)
- VPN secure connection capability with IPsec, GRE, and OpenVPN protocols
3g modem : Interface | |
Memory card slot for storage | No |
MicroUSB | No |
SIM card slot | Yes : 2 SIM card slots |
WAN | No |
LAN | Yes : 2 RJ45 10/100Mbps Ports |
USB | No |
FXO / FXS | No |
DSL | No |
Digital Input and Output | No |
Serial port | Yes: 1 RS-232/422/485 |
Alert Output | No |
3g modem : Radio specifications | |
Standards and Wireless Standards | No |
2G , 3G , 4G Standards | LTE CAT-1, HSPA, UMTS, EDGE, GPRS, GSM |
Radio Connection type | GuaranLink |
WiFi Antenna | No |
4G / 3G / 2G Antenna | 2 SMA female |
WiFi Gain Antenna | No |
4G / 3G / 2G Gain Antenna | - |
Maximum WiFi data transfer speed | No |
Maximum data transfer speed of 2G | - |
Maximum data transfer speed of 3G | - |
Maximum data transfer speed of 4G | - |
WiFi Radio Frequency | No |
2G network frequency | - |
3G network frequency | UMTS/HSPA 2100 MHz / 850 MHz / 900 MHz |
4G network frequency | LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz) |
Number of radio channels | No |
Maximum direct range | - |
Maximum WiFi Output Power | No |
Radio Channel Bandwidth | No |
3g modem : Software Specifications | |
VPN | OpenVPN (client and server), Tunnel mode (routing) and TAP mode (bridge), 5 Tunnels |
Firewall | Filter: MAC, IP protocol, port-based, Access IP list |
WPS | No |
Serial performance | - |
3g modem : General | |
Operating mode | LTE gateway |
Management | OnCell Central Manager, GuaranLink, DHCP server, DDNS, ARP, Telnet, TCP/IP, UDP, SMTP, Remote SMS Control, Syslog, SNMPv1/v2c/v3, Serial Console, Telnet Console, Web Console, Wireless Search Utility |
3g modem : Standards and protocols | |
Protocols | SNTP Client, HTTPS, NAT, GuaranLink, DHCP server, DDNS, ARP, Telnet, TCP/IP, UDP, SMTP, Remote SMS Control, Syslog, SNMPv1/v2c/v3, Serial Console, Telnet Console, Web Console, Wireless Search Utility |
Serial port standard | RS-232/422/485 |
3g modem : Features and capabilities | |
3G phone calls | No |
Create and edit phonebook | Yes |
Send and receive SMS | Yes |
3g modem : Security | |
Security and Encryption | DES, 3DES, AES, MD5, SHA-1, DH2, DH5 |
Authentication | PSK/X.509/RSA |
Serial security | - |
SSID | - |
3g modem : Power Requirements | |
Power Consumption (Output Adapter) | 5 W (typ.) |
POE Support | No |
Battery | No |
Type of power input | Terminal block |
3g modem : Buttons | |
Power button | No |
3G / WAN button | No |
WPS button | No |
Reset | Yes |
3g modem : LED Indicators | |
Phone | No |
SMS | No |
WLAN | No |
4G / 3G / 2G | Yes |
WAN | No |
LAN | Yes |
Power | Yes |
Internet | Yes |
Wireless Signal Strength | No |
WPS | No |
3g modem : Physical Characteristics | |
Dimensions | 128.5 x 26 x 89.1 mm (5.06 x 1.02 x 3.51 in) |
Weight | 550 g (1.22 lb) |
Operating Temperature | 0 to 55°C (32 to 131°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Type of Use | Industrial environment |
Standards and Certifications | EMC, EMI, EMS, Freefall, ATEX, IECEx, Class I Division 2, FCC, PTCRB, EN 301489-1/17, EN 301511, EN 301908-1 AS/CA S042, EN 62311(MPE SAR, Safety, Shock, Vibration |
