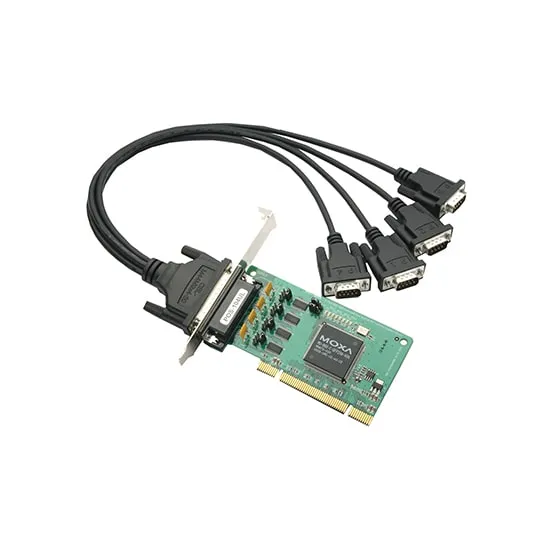

MOXA POS-104UL-DB9M UPCI Serial Board






MOXA POS-104UL-DB9M UPCI Serial Board
- Model: POS-104UL-DB9M
$0.00
Ex Tax: $0.00
MOXA POS-104UL-DB9M FEATURES
- 4 x RS-232 Ports with DB44 female connector
- Top performance with over 800 kbps data throughput
- Supports maximum 921.6 kbps baud rate
- 128-byte FIFO and on-chip H/W, S/W flow control
- Compatible with PCI and PCI-X cards with 3.3/5 V
- Low-profile board form factor
- Compatible Driver with Windows, Linux, and UNIX
- Included Cable: CBL-M44M9x4-50
- 0 to 55°C Operating Temperature

Over 40 Years in Business
Successful track record across Canada

Full Engineering Services
A powerhouse to provide consultation, training, and support

Strong Brand Portfolio
Top-notch products from superb global and local suppliers

Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
MOXA POS-104UL-DB9M INTRODUCTION
The POS-104UL is a smart, 4-port Universal PCI serial board designed for POS and ATM applications and for use by industrial automation system manufacturers and system integrators. The POS-104UL is compatible with all major operating systems. In addition, each of the 4 RS-232 serial ports supports data rates up to 921.6 kbps and provides full modem control signals to ensure compatibility with a wide range of serial peripherals. The POS-104UL supplies 5 or 12 volts of power to each serial port, and it works with both 3.3 V and 5 V PCI buses, making it suitable for installation in most PC servers.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA POS-104UL-DB9M UPCI Serial Board online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the POS-104UL-T model in the MOXA POS-104UL Series.
MOXA POS-104UL-DB9M CERTIFICATION
Multiport Serial Boards : Serial Interface | |
Comm. Controller | 16C550C compatible |
Number of Ports | 4 |
Bus interface | 32-bit Universal PCI |
Serial Standards | RS-232 |
Connector | DB44 female |
Baudrate | 50 bps to 921.6 kbps |
Stop Bits | 1, 1.5, 2 |
Parity | Even, Odd, Space, Mark, None |
Flow Control | RTS/CTS, XON/XOFF, None |
Data Bits | 5, 6, 7, 8 |
FIFO | 128-bytes |
Multiport Serial Boards : Serial Software Features | |
Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
UNIX Drivers | Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6 |
Multiport Serial Boards : Power Requirements | |
Power requirement | Output Power Rating: 1 A @ 5 V, 1 A @ 12 V (per port) |
Multiport Serial Boards : General | |
MTBF | 2,124,022 hrs |
Multiport Serial Boards : Physical Characteristics | |
Dimensions | 64.4 x 120 mm (2.53 x 4.72 in) |
Standards and Certifications | EMC, EMI, EMS, RoHS, CRoHS, WEEE |
Operating Temperature | 0 to 55°C (32 to 131°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Operation Humidity | 5 to 95% (non-condensing) |
