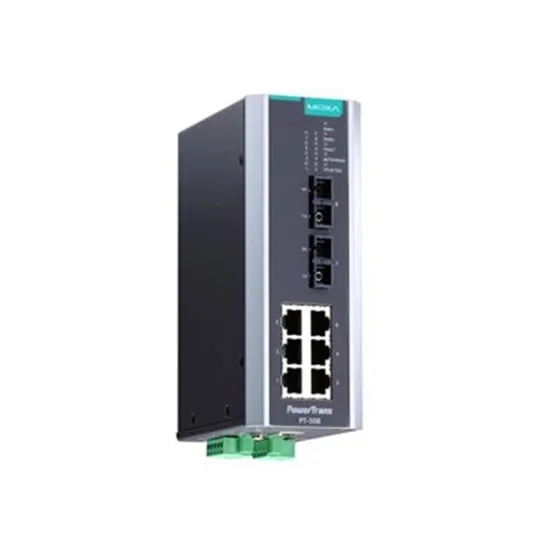

MOXA PT-508-SS-SC-48 Managed Ethernet Switch
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
The PowerTrans PT-508 Series is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-508’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC or 48 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall mounting design of the PT-508 switches simplify network planning and allows greater flexibility by letting you install up to 8 Fast Ethernet ports for power distribution applications.
Certifications
Features
- 6 x 10/100Mbps T(X) ports and 2 x 100BaseFX Single-Mode Ports with SC Connector
- DIN-rail
- Aluminum body
- 110/220 VAC/VDC input voltage
- -40 to 85°C operating temperature
- IEC 61850-3 and IEEE 1613 compliant
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
- Easy network management by the web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- Modbus TCP, LLDP, SNMP Inform, QoS, IGMP snooping, VLAN, IEEE 802.1X, HTTPS, SNMPv3, and SSH supported
