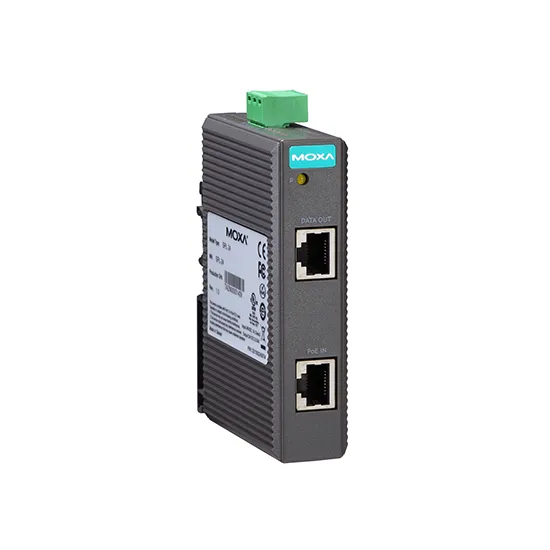

MOXA SPL-24-T PoE Splitter
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
The main benefit of PoE is that it can transfer data and power to Ethernet-enabled devices using a standard Ethernet CAT5 cable. Moxa’s SPL-24 PoE splitters perform the role of powered devices (PDs) and split power from the injector to Ethernet devices. When using Moxa’s devices, power and data can be transmitted up to 100 meters (328 feet) from the power source equipment (PSE).
The standard model can operate in temperatures from 0 to 60°C (32 to 140°F) and the wide-temperature model can operate in temperatures from -40 to 75°C (-40 to 167°F). In addition, the rugged hardware means that these devices will perform reliably even when used in demanding industrial applications.
Certifications
Features
- 1 x 10/100 T(x) PoE port and 1 x 1 x 10/100 T(x) port
- 44 to 75 VDC Operating Voltage
- Metal body
- -40 to 75°C operating temperature
- IEEE 802.3af compliant; splits power and data from PoE equipment
- Supports output power up to 12.95 W at 24 VDC
- Short-circuit protection for power output
- DIN-rail mounting ability
